Schneider AvatarOn switched socket 3P 15A 250V Metal Gold Hairline E8315_15_GH_G12
AvatarOn switched socket 3P 15A 250V Metal Gold Hairline
Model :E8315_15_GH_G12
SKU :E8315_15_GH_G12
7 days retun policy available
Cash on Delivery available
- Condition: New
Description for Schneider AvatarOn switched socket 3P 15A 250V Metal Gold Hairline E8315_15_GH_G12
Schneider AvatarOn switched socket 3P 15A 250V Metal Gold Hairline E8315_15_GH_G12

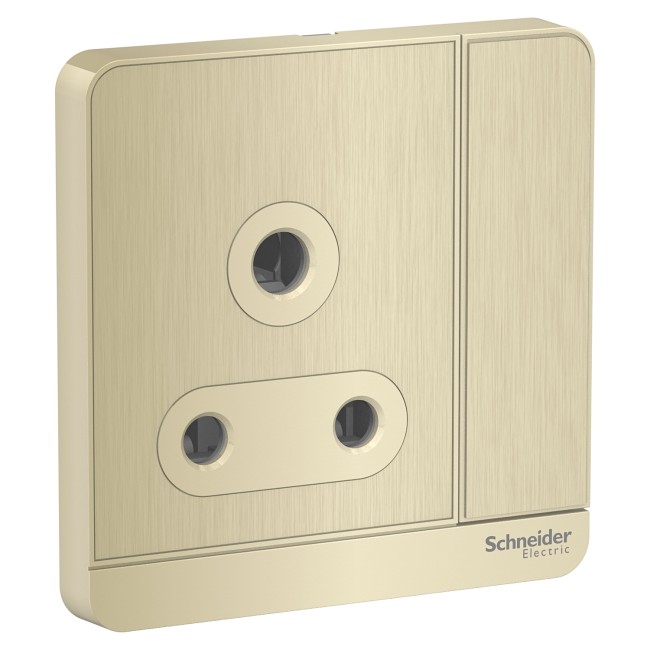

Schneider Electric AvatarOn switched socket E8315_15_GH_G12 is a complete product in color metal gold hairline and with 1 gang. This switch is 3P. And this device is British BS 546 standard. And its rated current is 15A. Its matching mounting box can be recessed into the surface of the wall with flush type. The fixing mode of this device is screw. It reaches IP20 degree of protection too. What's more, it well satisfied the standard of BS 546, MS 1577, SS 472. What's more, this device is qualified as a green premium product, with minimal use of hazardous substances. Being made of polycarbonate material, this switched socket is quite reliable and resistant. AvatarOn offers six fashionable, classic appearances, letting your home's details change, just like the changes in your colorful life. Unique, patented technology and exquisite manufacturing ensure comfortable operation, and the easy-mount design allows you to change the faceplates as quickly and easily as you wish.
Specifications
| Product or component type | Switched socket |
|---|---|
| Device application | Power supply |
| device presentation | Complete product |
| Outlet poles configuration | 3P with shutter |
| Type of packing | Flow-pack |
| Rated current | 15 A socket-outlet |
|---|---|
| [Ue] rated operational voltage | 250 V AC 50/60 Hz |
| Socket number | 1 |
| Outlet standard description | With earthing contact |
| Outlet standard deviation | British BS 546 |
| Number of gangs | 1 gang |
| Service life in cycles | 20000 cycles |
| Electrical durability | 5000 cycles |
| Connections - terminals | Screw terminal |
| Material | Polycarbonate: grid plate Polycarbonate: surround |
| Surface finish | Glossy |
| Surface treatment | Painted cover plate |
| device mounting | Surface |
| Fixing mode | Screw |
| Height | 86 mm |
| Width | 86 mm |
| Depth | 32.6 mm |
| IP degree of protection | IP20 |
|---|---|
| Ambient air temperature for operation | -5…45 °C |
| Ambient air temperature for storage | -5…60 °C |
| Standards | BS 546 SS 472 MS 1577 |
| Product certifications | SIRIM |
