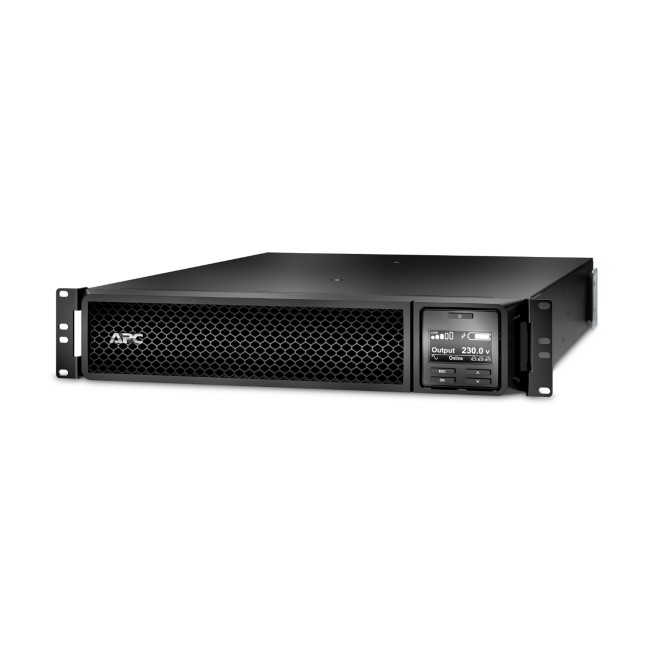

Schneider APC Smart-UPS SRT 2200VA RM 230V SRT2200RMXLI
This product is part of the Smart-UPS On-Line range that provides high density, true double-conversion on-line power protection. This 2200VA/1980W [...]
Model :SRT2200RMXLI
SKU :
This item cannot be returned or exchanged
Cash on Delivery available
- Condition: New
Description for Schneider APC Smart-UPS SRT 2200VA RM 230V SRT2200RMXLI
This product is part of the Smart-UPS On-Line range that provides high density, true double-conversion on-line power protection. This 2200VA/1980W On-line pure sine wave UPS provides scalable runtime while minimizing maintenance. The SRT is a 2U rack/tower convertible UPS that is external battery compatible for more runtime during prolonged outages. The UPS has an optional Network Management Card for network-based monitoring and PowerChute Business Edition for unattended shutdown. It comes with BS1363A British, IEC 60320 C20, and Schuko CEE 7/EU1-16P inputs, 8x IEC 320 C13/60320 C13 and 2x IEC 320 C19/60320 C19 outlets. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. Its dimensions are 584mm (depth) x 85mm (height) x 432mm (width) and weighs 25.00kg. Ideal for servers, voice/data networks, medical labs, and light industrial applications. It conforms to CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, and VDE. Designed for IT professionals or network administrators providing wide input voltage window, tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.
Specifications
Presentation | High density, double-conversion on-line power protection with scalable runtime. |
---|---|
Lead time | Usually in Stock |
Run time for load WEnter the total load (power draw) of all devices that will be protected by the UPS. This will be used to estimate the run time of your devices during a total power outage. Adding run time increases availability by allowing the system to operate through longer outages without shutting down. Min-max: 198-1980 W | |
---|---|
Max. Capacity Used The maximum percentage of UPS capacity used to support your specified load. | |
Main Input Voltage | 230 V |
Other Input Voltage | 220 V 240 V |
Main Output Voltage | 230 V |
Other Output Voltage | 220 V 240 V |
rated power in W | 1980 W |
Rated power in VA | 2200 VA |
Input Connection Type | BS1363A British IEC 60320 C20 Schuko CEE 7 / EU1-16P |
output connection type | 8 IEC 60320 C13 2 IEC Jumpers 2 IEC 60320 C19 |
Number of rack unit | 2U |
Cable length | 2.44 m |
Number of cables | 1 |
Battery type | Lead-acid battery |
Provided equipment | CD with software Country-specific detachable power cord Documentation CD Installation guide Rack mounting hardware Rack mounting brackets Rack mounting support rails USB cable Warranty card |
Run Time | View Runtime Graph |
---|---|
Efficiency | View Efficiency Graph |
Number of battery filled slots | 1 |
Number of battery free slots | 0 |
Battery recharge time | 3 h |
Number of battery replacement quantity | 1 |
Battery voltage | 72 V |
Battery charger power | 122 W rated |
Battery power in VAH | 367 VAh runtime |
Battery life | 3…5 year(s) |
Replacement battery | APCRBC141 |
Battery option | SRT72RMBP 1 1101 VAh SRT72RMBP 2 1835 VAh SRT72RMBP 3 2569 VAh SRT72RMBP 4 3303 VAh SRT72RMBP 5 4037 VAh SRT72RMBP 6 4771 VAh SRT72RMBP 8 6239 VAh SRT72RMBP 10 7707 VAh |
Extended runtime | 1 |
product web sub-family | High density |
---|---|
Number of power module | 1400 |
Number of power module free slots | 0 |
Number of power module filled slots | 0 |
Redundant | No |
Colour | Black |
---|---|
Height | 8.5 cm |
Width | 43.2 cm |
Depth | 58.4 cm |
Product weight | 25 kg |
Mounting location | Front |
Mounting preference | Lower |
Mounting mode | Rack-mounted |
Two post mountable | 0 |
USB compatible | Yes |
Mounting position | Horizontal |
Network frequency | 40...70 Hz auto-sensing |
---|---|
Input voltage limits | 100...275 V adjustable (half load) |
Maximum configurable power in W | 1980 W |
---|---|
Harmonic distortion | Less than 2 % |
Output frequency | 50/60 Hz +/- 3 Hz sync to mains |
Crest factor | 3 : 1 |
UPS type | Double conversion online |
Wave type | Sine wave |
bypass type | Built-in bypass |
Maximum configurable power in VA | 2200 VA |
Product certifications | CE EAC RCM VDE |
---|---|
marking | CE Mark |
Standards | EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 |
Ambient air temperature for operation | 0…40 °C |
---|---|
Relative humidity | 0…95 % non-condensing |
Operating altitude | 0...10000 ft |
Ambient air temperature for storage | -20…50 °C |
Storage Relative Humidity | 0…95 % non-condensing |
Storage altitude | 0.00…15240.00 m |
Acoustic level | 55 dBA |
Heat dissipation | 535 Btu/h |
IP degree of protection | IP20 |
Free slots | 1 |
---|---|
Alarm | Audible and visible alarms : prioritized by severity |
Emergency power off | Yes |
Surge energy rate | 340 J |
---|
Unit Type of Package 1 | PCE |
---|---|
Number of Units in Package 1 | 1 |
Package 1 Height | 24.6 cm |
Package 1 Width | 81 cm |
Package 1 Length | 59.9 cm |
Package 1 Weight | 34.02 kg |
Warranty | 3 years repair or replace (excluding battery) and 2 years for battery |
---|
