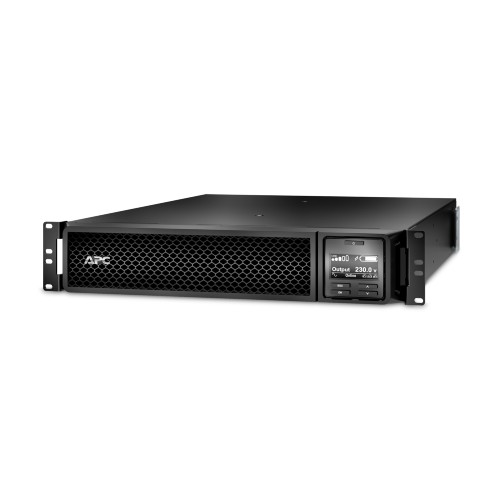

Schneider APC Smart-UPS SRT 1000VA 230V SRT1000XLI
Model :SRT1000XLI
SKU :
This item cannot be returned or exchanged
Cash on Delivery available
- Condition: New
Description for Schneider APC Smart-UPS SRT 1000VA 230V SRT1000XLI
Specifications
| Presentation | High density, double-conversion on-line power protection with scalable runtime. |
|---|---|
| Lead time | Usually in Stock |
Run time for load WEnter the total load (power draw) of all devices that will be protected by the UPS. This will be used to estimate the run time of your devices during a total power outage. Adding run time increases availability by allowing the system to operate through longer outages without shutting down. Min-max: 100-1000 W | |
|---|---|
Max. Capacity Used The maximum percentage of UPS capacity used to support your specified load. | |
| Main Input Voltage | 230 V |
| Other Input Voltage | 220 V 240 V |
| Main Output Voltage | 230 V |
| Other Output Voltage | 220 V 240 V |
| rated power in W | 1000 W |
| Rated power in VA | 1000 VA |
| Input Connection Type | IEC 60320 C14 |
| output connection type | 6 IEC 60320 C13 |
| Cable length | 1.83 m |
| Number of cables | 1 |
| Battery type | Lead-acid battery |
| Provided equipment | CD with software Communication cable Documentation CD Installation guide Removable support feet USB cable Warranty card |
| Run Time | View Runtime Graph |
|---|---|
| Number of battery filled slots | 1 |
| Number of battery free slots | 0 |
| Battery recharge time | 3 h |
| Number of battery replacement quantity | 1 |
| Battery voltage | 48 V |
| Battery charger power | 97 W rated |
| Battery power in VAH | 293 VAh runtime |
| Battery life | 3…5 year(s) |
| Replacement battery | APCRBC155 |
| Battery option | SRT48BP 1 879 VAh SRT48BP 2 1465 VAh SRT48BP 3 2051 VAh SRT48BP 4 2637 VAh SRT48BP 5 3223 VAh SRT48BP 6 3809 VAh SRT48BP 8 4981 VAh SRT48BP 10 6153 VAh |
| Extended runtime | 1 |
| product web sub-family | High density |
|---|---|
| Number of power module free slots | 0 |
| Number of power module filled slots | 0 |
| Redundant | No |
| Colour | Black |
|---|---|
| Height | 43.2 cm |
| Width | 8.5 cm |
| Depth | 50.5 cm |
| Product weight | 20.5 kg |
| Mounting preference | No preference |
| Mounting mode | Rack-mounted with kit |
| Two post mountable | 0 |
| USB compatible | Yes |
| Mounting position | Vertical |
| Network frequency | 40...70 Hz auto-sensing |
|---|---|
| Input voltage limits | 100...275 V 40% load 176...275 V |
| Maximum configurable power in W | 1000 W |
|---|---|
| Harmonic distortion | Less than 2 % |
| Output frequency | 50/60 Hz +/- 3 Hz sync to mains |
| Crest factor | 3 : 1 |
| UPS type | Double conversion online |
| Wave type | Sine wave |
| bypass type | Built-in bypass |
| Maximum configurable power in VA | 1000 VA |
| Product certifications | CE EAC |
|---|---|
| Standards | EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 |
| Ambient air temperature for operation | 0…40 °C |
|---|---|
| Relative humidity | 0…95 % non-condensing |
| Operating altitude | 0...10000 ft |
| Ambient air temperature for storage | -20…50 °C |
| Storage Relative Humidity | 0…95 % non-condensing |
| Storage altitude | 0.00…15240.00 m |
| Acoustic level | 50 dBA |
| Heat dissipation | 317 Btu/h |
| IP degree of protection | IP20 |
| Free slots | 1 |
|---|---|
| Alarm | Audible and visible alarms : prioritized by severity |
| Emergency power off | Yes |
| Surge energy rate | 432 J |
|---|
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 24.6 cm |
| Package 1 Width | 74.9 cm |
| Package 1 Length | 59.4 cm |
| Package 1 Weight | 29.6 kg |
| Warranty | 3 years repair or replace (excluding battery) and 2 years for battery |
|---|
