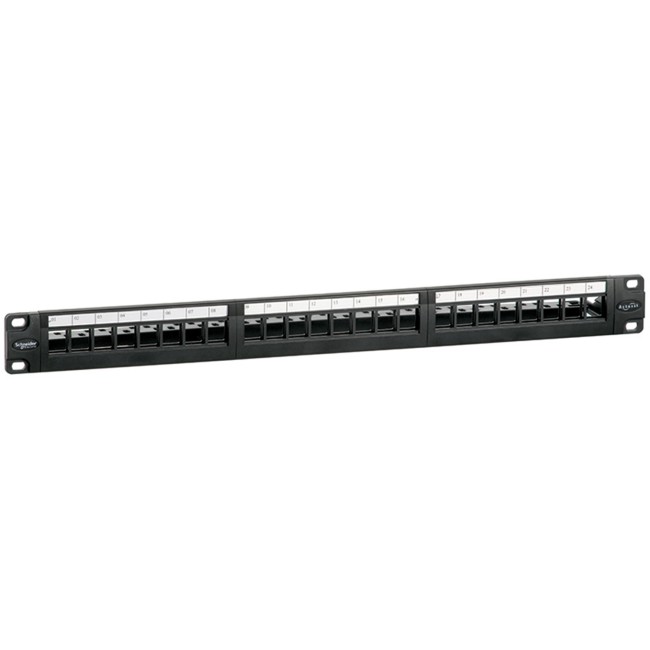

Schneider Actassi - Patch Panel - 19
This 19 inch rack is provided without RJ45 This 19 inch rack can support 24 Punch down RJ45 unshielded in 1U height. 3 labels are [...]
Model :VDIEG113241U
SKU :
This item cannot be returned or exchanged
Cash on Delivery available
- Condition: New
Description for Schneider Actassi - Patch Panel - 19
This 19 inch rack is provided without RJ45 This 19 inch rack can support 24 Punch down RJ45 unshielded in 1U height. 3 labels are provided to identify each ports and are protected by a transparent label holder. 4 fixation screws are provided with cage nuts to fix the patch panel inside the enclosure. The cable manager provided allow cables organization and fixation at the rear of the panel. Cable manager can be removed to ease the accessibility to panels and RJ45.
Specifications
| range of product | Actassi |
|---|---|
| Product brand | Schneider Electric |
| Product or component type | Empty fixed 19" data panel |
| Device application | Punch down tool |
| Device presentation | Empty |
| Provided equipment | Removable cable tray 1 5e U/UTP inside the enclosure Screws and nuts 4 6 inside the rack Velcro 4 Unloaded |
| Colour | Black (RAL 9005) |
| Quantity per set | Set of 1 |
| Connector type | RJ45 |
|---|---|
| Number of port | 24 port |
| AWG gauge | AWG 25...AWG 23 |
| Cable outer diameter | 0.8…1.41 mm |
| Cable shielding type | U/UTP |
| Communication network category | 5e 6 |
| Number of rack unit | 1U |
| Installation direction | Horizontal |
| Type of connector | S-110 keystone |
| Type of installation | Indoor installation |
| Material | ABS + PC + metal |
| Width | 482.6 mm |
| Depth | 125 mm |
| Height | 44.5 mm |
| Net weight | 1 kg |
| Ambient air temperature for operation | -10…60 °C |
|---|---|
| Ambient air temperature for storage | -40…70 °C |
| Relative humidity | 0…93 % |
| Standards | IEC 60297 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7 cm |
| Package 1 Width | 10 cm |
| Package 1 Length | 51.5 cm |
| Package 1 Weight | 0.497 kg |
| Warranty | 18 months |
|---|
