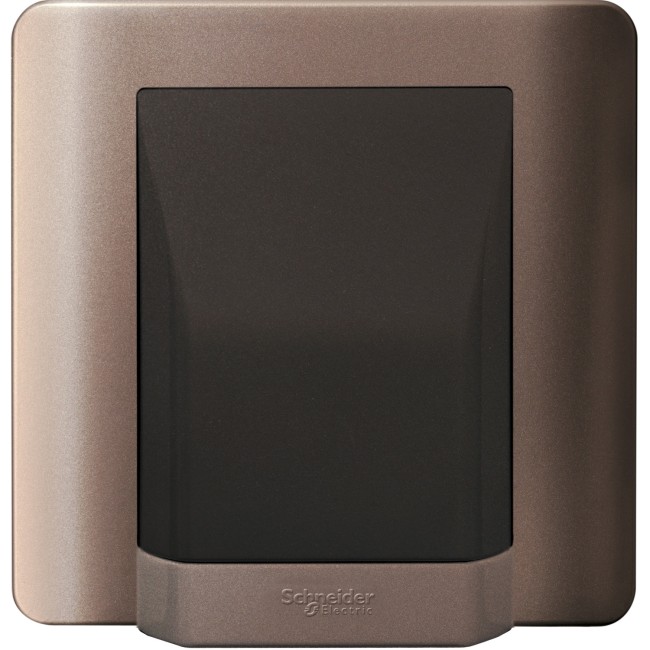

Schneider 45A CONNECTION UNIT E84554_SZ
Model :E84554_SZ
SKU :
This item cannot be returned or exchanged
Cash on Delivery available
- Condition: New
Description for Schneider 45A CONNECTION UNIT E84554_SZ
Specifications
| Product or component type | Connection unit |
|---|---|
| Load type | Inductive Resistive |
| Cover frame colour tint | Silver bronze |
| Width | 87 mm |
|---|---|
| Height | 87 mm |
| Depth | 30 mm |
| Wiring device mounting | Surface Flush |
| Rated current | 25 A at 250 V AC 50 Hz |
| Material | Polycarbonate + 20 % FG: grid plate Polycarbonate: base Polycarbonate: surround |
| Contacts material | Contact: brass and phosphor bronze |
| Connections - terminals | Pillar terminals |
| Number of cables | 1 cable(s) 16 mm² |
| Ambient air temperature for operation | -5…40 °C |
|---|---|
| Relative humidity | 0…95 % |
| Environmental characteristic | UV resistant indoor use |
| Operating altitude | 2000 m |
| Standards | BS 5733 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3 cm |
| Package 1 Width | 8.72 cm |
| Package 1 Length | 8.72 cm |
| Package 1 Weight | 202.81 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 6 |
| Package 2 Height | 9.5 cm |
| Package 2 Width | 15 cm |
| Package 2 Length | 19 cm |
| Package 2 Weight | 1.416 kg |
| Unit Type of Package 3 | CAR |
| Number of Units in Package 3 | 60 |
| Package 3 Height | 21 cm |
| Package 3 Width | 32.5 cm |
| Package 3 Length | 50 cm |
| Package 3 Weight | 14668.6 g |
| Warranty | 18 months |
|---|
