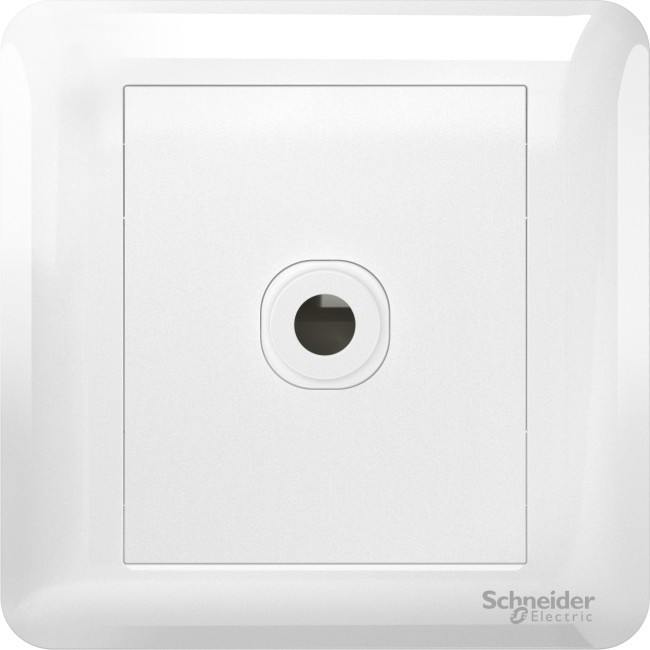

Schneider 25A 250V Connection Unit, White A3G31TB_WE_G11
Model :A3G31TB_WE_G11
SKU :
This item cannot be returned or exchanged
Cash on Delivery available
- Condition: New
Description for Schneider 25A 250V Connection Unit, White A3G31TB_WE_G11
Specifications
| Range | Affle Plus |
|---|---|
| Product or component type | Connection unit |
| Device presentation | Complete mechanism |
| Cover frame colour tint | White |
| Material | Polycarbonate: grid plate Polycarbonate: surround Polycarbonate: cover Polycarbonate: base |
|---|---|
| device mounting | Flush |
| Mounting support | Wall mounted |
| Fixing mode | By screw M3.5 |
| Fixing center | 60.3 mm |
| Embedding depth | 35 mm |
| Rated current | 25 A at 250 V AC, resistive |
| Network frequency | 50 Hz |
| Contacts material | Brass and phosphor bronze |
| Connections - terminals | Pillar terminal |
| Terminal identifier | L in L out N in Earth N out |
| Tightening torque | 0.4 N.m |
| Width | 86 mm |
| Height | 86 mm |
| Depth | 38.1 mm |
| Product weight | 0.068 kg |
| Standards | BS 5733 |
|---|---|
| Ambient air temperature for operation | -5…40 °C |
| Relative humidity | 0…95 % |
| Environmental characteristic | Indoor use |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.8 cm |
| Package 1 Width | 8.6 cm |
| Package 1 Length | 8.6 cm |
| Package 1 Weight | 75 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 8 |
| Package 2 Height | 9.5 cm |
| Package 2 Width | 15 cm |
| Package 2 Length | 19 cm |
| Package 2 Weight | 606 g |
| Unit Type of Package 3 | CAR |
| Number of Units in Package 3 | 96 |
| Package 3 Height | 21 cm |
| Package 3 Width | 39.9 cm |
| Package 3 Length | 46.9 cm |
| Package 3 Weight | 7.772 kg |
