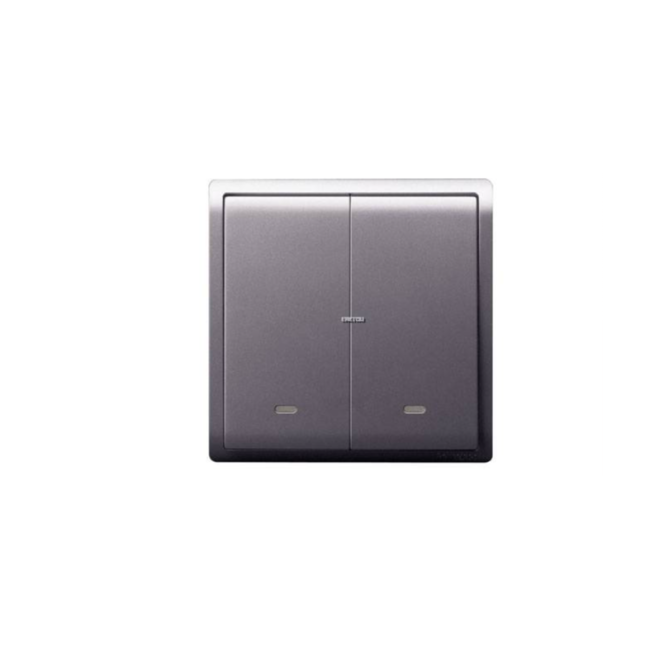

Schneider 20A-16AX 250V 2 Gang 2 Way Switch with Fluorescent Locator, Aluminium Silver E8232L2F20_AS_G1
Model :E8232L2F20_AS_G1
SKU :
This item cannot be returned or exchanged
Cash on Delivery available
- Condition: New
Description for Schneider 20A-16AX 250V 2 Gang 2 Way Switch with Fluorescent Locator, Aluminium Silver E8232L2F20_AS_G1
The Schneider 20A 2 Gang 2 Way Switch in Aluminium Silver (Model E8232L2F20_AS_G1) combines functionality and style to offer an advanced solution for controlling electrical circuits. Designed for use with 250V systems, this switch features a robust 20A rating, ensuring reliable operation for high-power applications. The dual-gang configuration allows control of two separate circuits from one location. The integrated fluorescent locator enhances visibility in low-light conditions, making it easy to find the switch even in darkness. Its sleek aluminium silver finish adds a modern touch to any interior.
Features
Schneider 20A 2 Gang 2 Way Switch Fluorescent Locator Aluminium Silver E8232L2F20_AS_G1
| Main | |
|---|---|
| Range | Pieno |
| Product or component type | Switch |
| Device application | Control |
| Load type | Resistive, Fluorescent |
| Cover frame colour tint | Aluminium silver |
| Complementary | |
| Device mounting | Flush, Surface |
| Wiring device mounting | Flush, Surface |
| Switch function | 2-way |
| Rated current | 20 A at 250 V AC 50 Hz |
| Local signalling | Fluorescent (white) |
| Number of gangs | 2 gangs |
| Material | Polycarbonate: surround, Polycarbonate: grid plate |
| Connections - terminals | Pillar terminals |
| Clamping connection capacity | 2 x 1.5 mm² for stranded cable(s), 2 x 2.5 mm² for solid cable(s) |
| Embedding depth | 23 mm |
| Width | 87 mm |
| Height | 87 mm |
| Depth | 23 mm |
| Environment | |
| Ambient air temperature for operation | -5…40 °C |
| Relative humidity | 0…95 % |
| Standards | IEC 60669-1, SS 227-1, MS IEC 60669-1, GB 16915.1, BS EN 60669-1 |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.55 cm |
| Package 1 Width | 8.7 cm |
| Package 1 Length | 8.7 cm |
| Package 1 Weight | 124.65 g |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 80 |
| Package 2 Height | 21 cm |
| Package 2 Width | 32.5 cm |
| Package 2 Length | 50 cm |
| Package 2 Weight | 9972 g |
| Unit Type of Package 3 | PAL |
| Number of Units in Package 3 | 1600 |
| Package 3 Height | 84 cm |
| Package 3 Width | 82.5 cm |
| Package 3 Length | 100 cm |
| Package 3 Weight | 216440 g |
| Contractual Warranty | |
| Warranty | 18 months |
