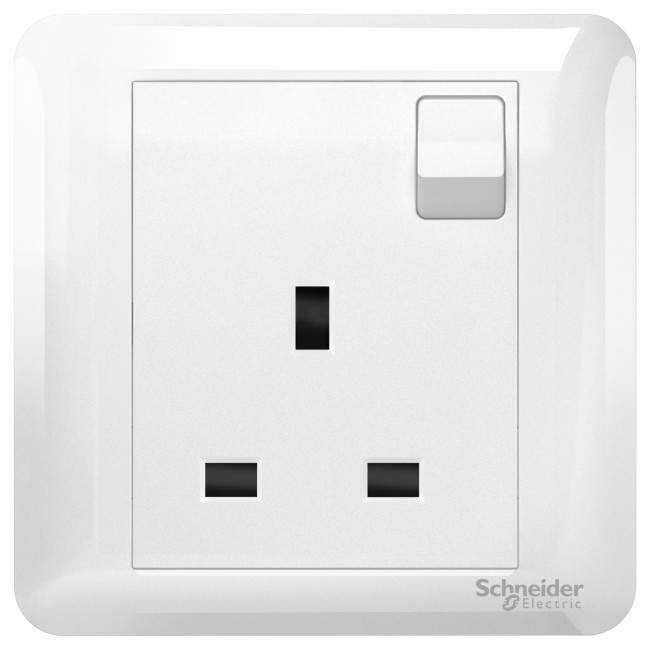

Schneider 13A Single Gang Switched Socket, White A3G15_WE_G11
Model :A3G15_WE_G11
SKU :
This item cannot be returned or exchanged
Cash on Delivery available
- Condition: New
Description for Schneider 13A Single Gang Switched Socket, White A3G15_WE_G11
Specifications
| Range | Affle Plus |
|---|---|
| Product or component type | Switched socket |
| Device presentation | Mechanism |
| Outlet poles configuration | 3P with shutter |
| Outlet standard description | With earthing contact |
| outlet standard | BS 1363 |
| Colour tint | White |
| Type of packing | Flow-pack |
| Sale per indivisible quantity | 1 |
| Number of terminals | 3 |
| Socket number | 1 |
|---|---|
| device mounting | Flush |
| Fixing mode | Screw |
| Surface finish | Glossy |
| Surface treatment | Untreated mechanism cover |
| Rated current | 13 A socket-outlet |
| [Ue] rated operational voltage | 250 V AC 50/60 Hz |
| Service life in cycles | 15000 cycles |
| Electrical durability | 15000 cycles |
| Connections - terminals | Screw terminal |
| Screwdriver shape | Philips No 2 |
| Number of cables | 2 |
| Clamping connection capacity | 2.5...4 mm² for rigid cable(s) 2.5...4 mm² for stranded cable(s) 2.5...4 mm² for flexible cable(s) |
| Wire stripping length | 14 mm |
| Material | PC (polycarbonate) Brass |
| Height | 86 mm |
| Width | 86 mm |
| Depth | 29.7 mm |
| Embedding depth | 18.8 mm |
| Product weight | 0.064 kg |
| Ambient air temperature for storage | -5…45 °C |
|---|---|
| Ambient air temperature for operation | -5…45 °C |
| Standards | BS 1363 MS 589 |
| Product certifications | SIRIM |
| IP degree of protection | IP20 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.9 cm |
| Package 1 Width | 8.6 cm |
| Package 1 Length | 8.6 cm |
| Package 1 Weight | 74 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 9.5 cm |
| Package 2 Width | 15 cm |
| Package 2 Length | 19 cm |
| Package 2 Weight | 749 g |
| Unit Type of Package 3 | CAR |
| Number of Units in Package 3 | 120 |
| Package 3 Height | 21 cm |
| Package 3 Width | 39.9 cm |
| Package 3 Length | 46.9 cm |
| Package 3 Weight | 9.488 kg |
