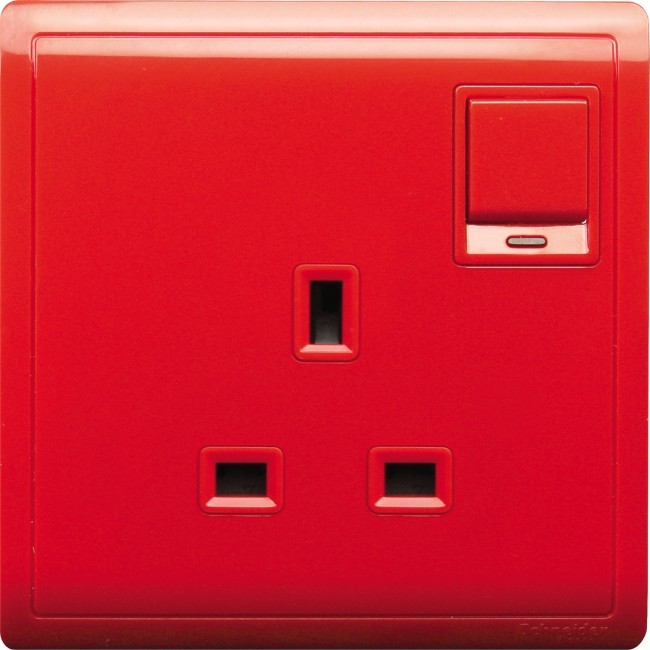

Schneider 13A 250V 1 Gang Switched Socket with Neon, Full Red E8215N_RD
Model :E8215N_RD
SKU :
This item cannot be returned or exchanged
Cash on Delivery available
- Condition: New
Description for Schneider 13A 250V 1 Gang Switched Socket with Neon, Full Red E8215N_RD
Specifications
| Product or component type | Power socket-outlet |
|---|---|
| Switch function | Switch |
| Rated current | 13 A at 250 V AC 50...60 Hz |
| Number of gangs | 1 gang |
| Load type | Resistive |
| Cover frame colour tint | Red |
| Wiring device mounting | Surface Flush |
|---|---|
| Material | Polycarbonate: surround Polycarbonate: grid plate |
| Clamping connection capacity | 2 x 4 mm² for stranded cable(s) 3 x 2.5 mm² for solid cable(s) |
| Width | 87 mm |
| Height | 87 mm |
| Depth | 26.6 mm |
| Ambient air temperature for operation | -5…40 °C |
|---|---|
| Relative humidity | 0…95 % |
| Standards | SS 145-2 BS 1363-2 MS 589-2 |
| Package 1 Weight | 83.000 g |
|---|---|
| Package 1 Height | 27.200 mm |
| Package 1 Width | 87.000 mm |
| Package 1 Length | 87.000 mm |
| Warranty | 18 months |
|---|
