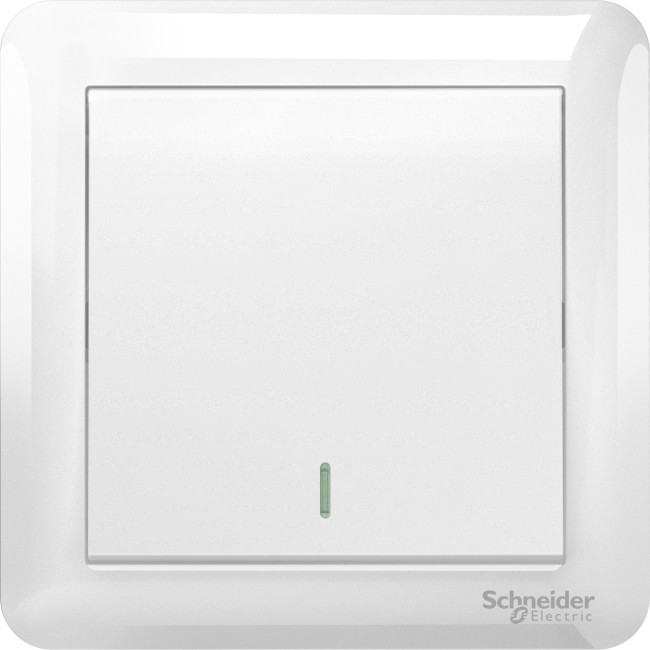

Schneider 10AX 250V 1 Gang 2 Way Switch, White A3G31B2A_WE_G11
Model :A3G31B2A_WE_G11
SKU :
This item cannot be returned or exchanged
Cash on Delivery available
- Condition: New
Description for Schneider 10AX 250V 1 Gang 2 Way Switch, White A3G31B2A_WE_G11
Specifications
| Range | Affle Plus |
|---|---|
| Product or component type | Switch |
| Device application | Control switch |
| Load type | Inductive Incandescent lamp Resistive Fluorescent lamp |
| Colour tint | White |
| device mounting | Flush |
|---|---|
| Switch function | 2-way |
| Cable cross section | 4 mm² stranded cable 2.5 mm² solid cable 2.5 mm² stranded cable 3 x 4 mm² solid cable for AC |
| Rated current | 10 AX at 250 V AC |
| Number of gangs | 1 gang |
| Material | Polycarbonate: grid plate Polycarbonate: base Polycarbonate: dolly Polycarbonate: surround Polycarbonate: actuator |
| Connections - terminals | Screw terminal Brass terminal |
| Embedding depth | 24.9 mm |
| Width | 86 mm |
| Height | 86 mm |
| Depth | 38.2 mm |
| Maximum ambient air temperature for operation | 35 °C |
|---|---|
| Relative humidity | 0…95 % |
| Operating altitude | 5000 m |
| Product certifications | IEC |
| Standards | MS IEC 60669-1 BS EN 60669-1 IEC 60669-1 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.8 cm |
| Package 1 Width | 8.6 cm |
| Package 1 Length | 8.6 cm |
| Package 1 Weight | 70 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 8 |
| Package 2 Height | 9.5 cm |
| Package 2 Width | 15 cm |
| Package 2 Length | 19 cm |
| Package 2 Weight | 564 g |
| Unit Type of Package 3 | CAR |
| Number of Units in Package 3 | 96 |
| Package 3 Height | 21 cm |
| Package 3 Width | 39.9 cm |
| Package 3 Length | 46.9 cm |
| Package 3 Weight | 7.273 kg |
