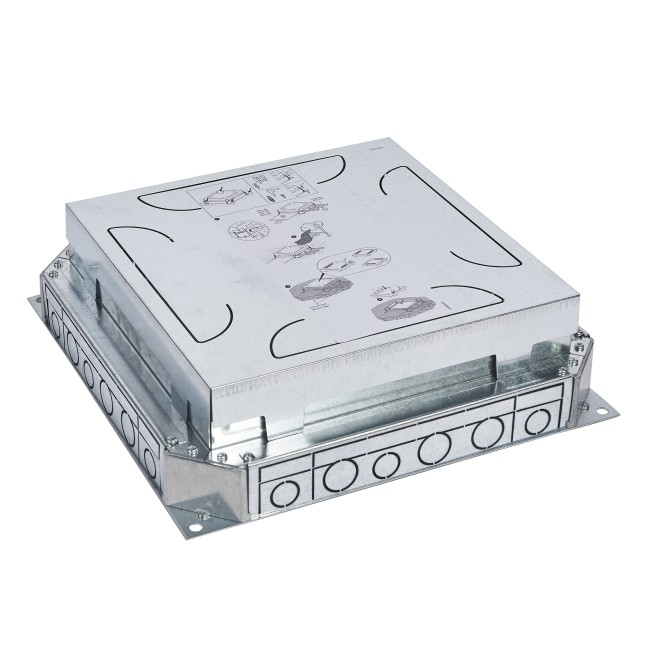

Legrand Specific Backbox For Screed Floor System 89604
Legrand Specific Backbox For Screed Floor System
Model :89604
SKU :89604
Free Delivery
This item cannot be returned or exchanged
Cash on Delivery available
- Condition: New
Description for Legrand Specific Backbox For Screed Floor System 89604
Legrand Specific Backbox For Screed Floor System 89604
Product Features
- For installation of floor box Cat.No 6896 52 for screed floor system. Screed thickness 65 to 90 mm
- For installation of floor box Cat.No 6896 52 for screed floor system. Screed thickness 65 to 90 mm
Main Features
- Conform to EN 50 085 - 2.2 and EN 60670-23
- Flat and simple installation
- Compatible with raised floor, flush floor and screed floor system
- Conform to EN 50 085 - 2.2 and EN 60670-23
- Flat and simple installation
- Compatible with raised floor, flush floor and screed floor system
Specifications
Technical characteristics
| Width | 325 mm |
|---|---|
| Min. height finishing layer | 65 mm |
| Depth | 325 mm |
| Suitable for subfloor duct countersunk (closed) | Yes |
| Suitable for subfloor duct overhead closed | No |
| Duct height | 25-38 mm |
| Duct width | 25-225 mm |
| Levelling range | 65-90 mm |
|---|---|
| Height | 90 mm |
| Built-in opening for floor column | Yes |
| Material side wall | Steel |
| Suitable for placing of sealing | No |
| Decoupling possibility cover from base unit | Yes |
