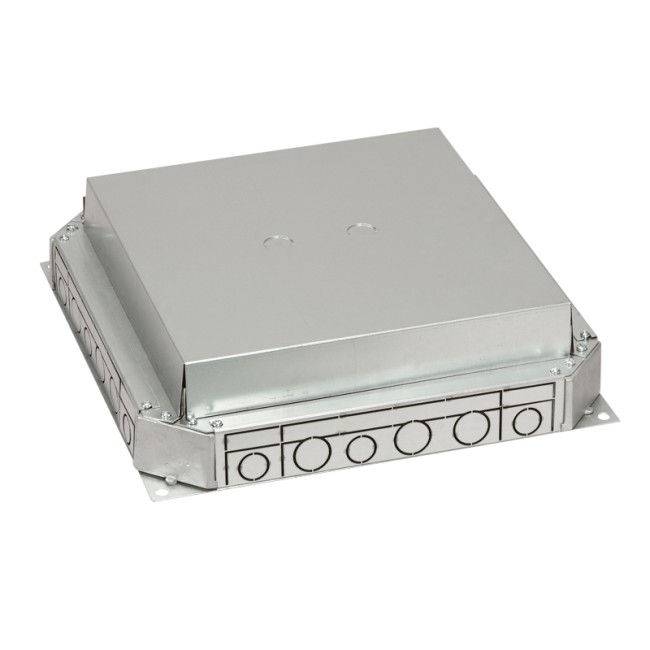

Legrand Screed Floor Backbox - for Ducting up to 225 mm - 3 Compartments 689634
Legrand Screed Floor Backbox - for Ducting up to 225 mm - 3 Compartments
Model :689634
SKU :689634
Free Delivery
This item cannot be returned or exchanged
Cash on Delivery available
- Condition: New
Description for Legrand Screed Floor Backbox - for Ducting up to 225 mm - 3 Compartments 689634
LEGRAND Screed Floor Backbox - for Ducting up to 225 mm - 3 Compartments
Product charateristics
- Floor boxes for carpet - Conform to IEC/EN 60670 - 23 - Compatible with either raised access floor trunking system and screed floor system
- Screed floor backboxes - To be fitted with lid and trim for carpet and support plates for Arteor mechanisms - Accept PVC and metal screed floor ducting and conduits 20 mm and 25 mm - Auto - adjustable to screed height 65 up to 90 mmFor ducting up to 225 mm - 3 compartments
Specifications
Technical characteristics
| Width | 325 mm |
|---|---|
| Min. height finishing layer | 65 mm |
| Depth | 325 mm |
| Suitable for subfloor duct countersunk (closed) | Yes |
| Suitable for subfloor duct overhead closed | No |
| Duct height | 25-38 mm |
| Duct width | 25-225 mm |
| Height | 90 mm |
|---|---|
| Built-in opening for floor column | Yes |
| Levelling range | 65-100 mm |
| Material side wall | Other |
| Suitable for placing of sealing | No |
| Decoupling possibility cover from base unit | Yes |
