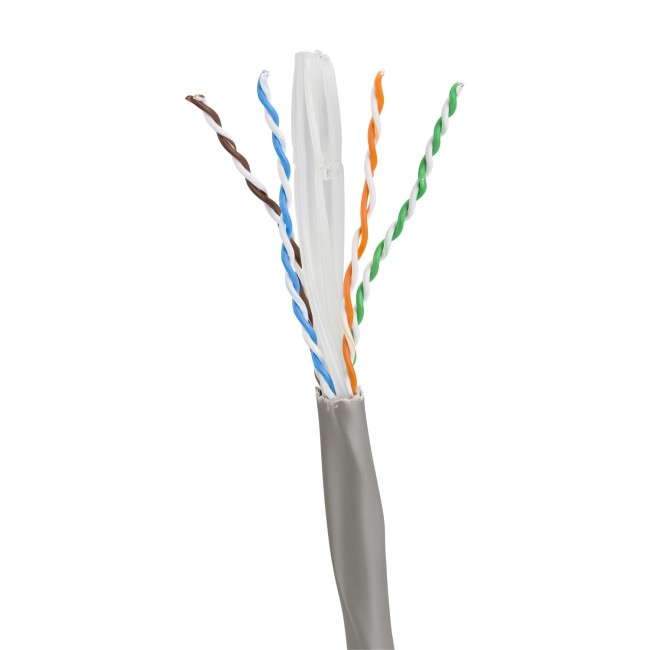

Schneider DIGILINK Solid Cable - Category 6A - UTP - 4 Pair - 305 m - DCTCAUTP4P3X
DIGILINK solid cable category 6A UTP 4 pair 305m
Model :DCTCAUTP4P3X
SKU :
Free Delivery
7 days retun policy available
Cash on Delivery available
- Condition: New
Description for Schneider DIGILINK Solid Cable - Category 6A - UTP - 4 Pair - 305 m - DCTCAUTP4P3X
The Schneider DIGILINK Category 6A solid cable provides high-performance connectivity with exceptional reliability. This UTP (Unshielded Twisted Pair) cable supports up to 10 Gigabit Ethernet (10GbE) applications, making it ideal for high-speed network installations. With a 305-meter length, it offers flexibility for large installations and ensures consistent signal integrity across extended distances.
Specifications
| Range | Digilink |
|---|---|
| Product or component type | Copper cable |
| Device application | Transmission |
| Cable shielding type | UTP |
| Communication network category | 6A |
| Colour tint | Grey |
| Type of cable | 4 twisted pair cables |
|---|---|
| Conductor material | Copper |
| Minimum return loss | 29.2 dB 1 MHz 36.7 dB 4 MHz 35.8 dB 8 MHz 33.2 dB 10 MHz 33 dB 16 MHz 32.1 dB 20 MHz 31.8 dB 25 MHz 29 dB 31.25 MHz 28.4 dB 65.5 MHz 27.9 dB 100 MHz 26.8 dB 200 MHz 25.6 dB 250 MHz 24.8 dB 300 MHz 24.4 dB 350 MHz 22.7 dB 400 MHz 16.5 dB 500 MHz 16.1 dB 600 MHz |
| Attenuation | 1.2 dB / 100 m at 1 MHz 2.3 dB / 100 m at 4 MHz 3.2 dB / 100 m at 8 MHz 4 dB / 100 m at 10 MHz 5.1 dB / 100 m at 16 MHz 5.9 dB / 100 m at 20 MHz 6.3 dB / 100 m at 25 MHz 7.1 dB / 100 m at 31.25 MHz 10 dB / 100 m at 65.5 MHz 12.9 dB / 100 m at 100 MHz 19.8 dB / 100 m at 200 MHz 21.9 dB / 100 m at 250 MHz 23.8 dB / 100 m at 300 MHz 25.9 dB / 100 m at 350 MHz 30.8 dB / 100 m at 400 MHz 31.2 dB / 100 m at 500 MHz 36.3 dB / 100 m at 600 MHz |
| Power sum near-end crosstalk [PSNEXT] | 83.4 dB at 1 MHz 82.2 dB at 4 MHz 77 dB at 8 MHz 76.2 dB at 10 MHz 70.3 dB at 16 MHz 67.2 dB at 20 MHz 67.3 dB at 25 MHz 64.6 dB at 31.25 MHz 59.6 dB at 65.5 MHz 59 dB at 100 MHz 53 dB at 200 MHz 47 dB at 250 MHz 45.4 dB at 300 MHz 44.5 dB at 350 MHz 45.6 dB at 400 MHz 40.4 dB at 500 MHz 38.3 dB at 600 MHz |
| Near end crosstalk [NEXT] | 89.8 dB at 1 MHz 86.3 dB at 4 MHz 79.4 dB at 8 MHz 78.3 dB at 10 MHz 80.6 dB at 16 MHz 77.8 dB at 20 MHz 71.2 dB at 25 MHz 71.3 dB at 31.25 MHz 67.6 dB at 65.5 MHz 65 dB at 100 MHz 59.3 dB at 200 MHz 55.2 dB at 250 MHz 51.4 dB at 300 MHz 49 dB at 350 MHz 48.1 dB at 400 MHz 47.9 dB at 500 MHz 37.9 dB at 600 MHz |
| Equal level far end crosstalk [ELFEXT] | 88 dB at 1 MHz 80.7 dB at 4 MHz 80.2 dB at 8 MHz 77.4 dB at 10 MHz 73.6 dB at 16 MHz 67 dB at 20 MHz 60.9 dB at 25 MHz 58.5 dB at 31.25 MHz 56.3 dB at 65.5 MHz 49.2 dB at 100 MHz 48.9 dB at 200 MHz 41.4 dB at 250 MHz 40.3 dB at 300 MHz 37.4 dB at 350 MHz 36.3 dB at 400 MHz 35.2 dB at 500 MHz 35.5 dB at 600 MHz |
| Power sum equal level far end crosstalk [PSELFEXT] | 80.6 dB at 1 MHz 69.3 dB at 4 MHz 63.3 dB at 8 MHz 61.5 dB at 10 MHz 57.3 dB at 16 MHz 55.4 dB at 20 MHz 53.9 dB at 25 MHz 51.8 dB at 31.25 MHz 49.9 dB at 65.5 MHz 46.7 dB at 100 MHz 35.8 dB at 200 MHz 30.5 dB at 250 MHz 30.2 dB at 300 MHz 31.1 dB at 350 MHz 27.4 dB at 400 MHz 26 dB at 500 MHz 22.2 dB at 600 MHz |
| Input impedance | 100 Ohm (+/- 6) at 1…600 MHz |
| DC resistance | 72 Ohm per 1 km |
| [Ue] rated operational voltage | 72 V DC (maximum) |
| Dielectric strength | 1500 V for 1 min |
| Insulation resistance | >= 500 MOhm/km 1 km 500 V DC |
| nominal velocity propagation | 69 % |
| Cable outer diameter | 8 mm |
| Cable length | 305 m |
| AWG gauge | AWG 23 |
| Material | PVC (polyvinyl chloride): jacket |
| Product certifications | UL listed UL/ETL verified |
|---|---|
| Standards | ANSI/TIA/EIA-568-C.2 IEC 61156-5 |
