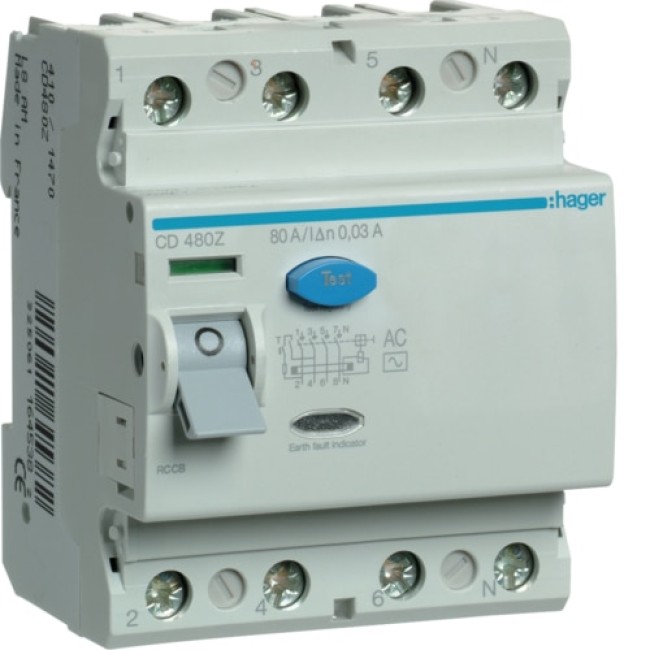

Hager RCCB 4P 80A 30mA AC Class - CD480Z

Description for Hager RCCB 4P 80A 30mA AC Class - CD480Z

The Hager RCCB 4P 80A 30mA AC Class (CD480Z) is designed for reliable electrical protection in high-capacity installations. With a rated current of 80A and 30mA residual current protection, it provides robust defense against leakage currents. This four-pole device is built to withstand up to 6kA of short-circuit currents and features a breaking capacity of 1.5kA. It operates efficiently across a wide range of temperatures, from -25°C to 40°C, making it suitable for various environmental conditions. The device offers easy installation with screw-type connections and meets the IEC 61008-1 standards for enhanced safety and performance.

Key Features:

• High Capacity: 80A rated current with 30mA residual current protection, ideal for high-demand applications.
• Strong Protection: Withstands short-circuit currents up to 6kA and breaking capacity of 1.5kA for enhanced safety.
• Temperature Resilience: Reliable performance from -25°C to 40°C, ensuring operation under varying conditions.
• Long Durability: Offers 2000 electrical endurance cycles and 4000 mechanical operations, ensuring extended service life.
• Flexible Installation: Features screw-type connections for secure and adaptable installation.
• Compliance: Fully complies with IEC 61008-1 for optimal electrical protection and safety.
• Safety: Residual current type AC ensures reliable leakage current protection.
