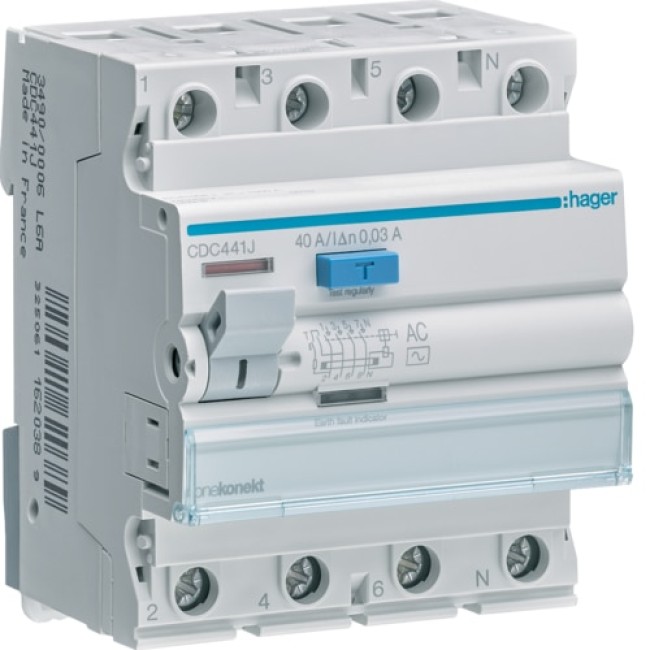

Hager RCCB 4P 40A 30mA AC Class - CDC441J

Description for Hager RCCB 4P 40A 30mA AC Class - CDC441J

The Hager RCCB 4P 40A 30mA AC Class (CDC441J) offers advanced protection for electrical installations, ensuring safety against leakage currents and electrical faults. With a 40A rated current and 30mA residual current protection, this four-pole device is ideal for both residential and commercial applications. Designed for operation in systems with a rated operational voltage of 240/415V, it provides reliable protection with a breaking capacity of 1500A and withstands short-circuit currents up to 6kA. The compact dimensions (70mm depth, 83mm height) make it easy to integrate into modular electrical setups, while the screw-type connections offer a secure and durable installation.

Key Features:

• Reliable Protection: Provides 30mA sensitivity to safeguard against leakage currents and electrical hazards.
• High Capacity: Rated for 40A current with a breaking capacity of 1500A, ensuring safe operation even in demanding conditions.
• Compact and Durable: Space-saving design with robust construction (70mm depth, 83mm height) for easy installation and long-lasting performance.
• Standard Compliance: Meets IEC 61008-1 standards for reliable and safe residual current protection.
• Temperature Range: Operates efficiently from -25°C to 40°C, making it suitable for various environmental conditions.
• Endurance: Supports up to 2000 electrical cycles and 4000 mechanical operations, ensuring long-term reliability.
• Connection Flexibility: Equipped with screw-type connections for secure and flexible installation.
