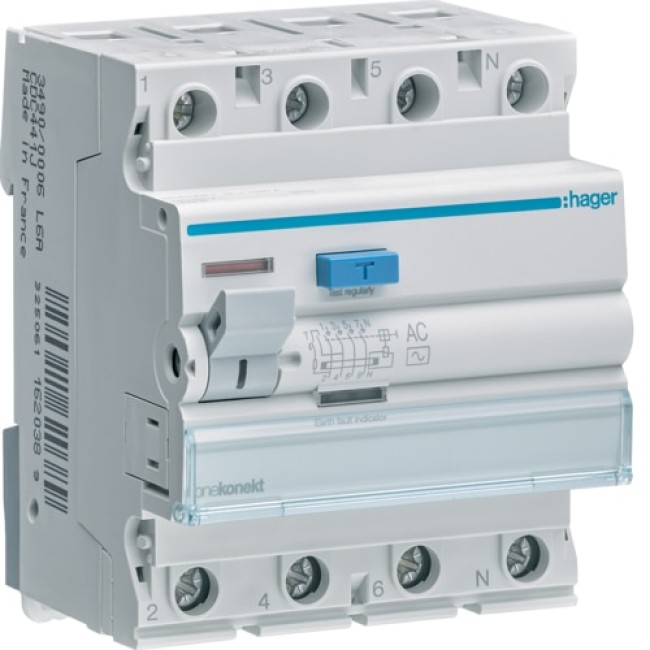

Hager RCCB 4P 40A 300mA AC Class - CFC441J

Description for Hager RCCB 4P 40A 300mA AC Class - CFC441J

The Hager RCCB 4P 40A 300mA AC Class (CFC441J) ensures superior protection for electrical systems by detecting ground faults and disconnecting the power to prevent hazards. This high-performance residual current circuit breaker is designed for residential, commercial, and industrial applications, delivering reliable safety and compliance.

Key Features:

• Rated Current & Residual Current: Supports a rated current of 40A and a residual operating current of 300mA for robust protection.
• Voltage Specifications: Operates effectively at 240/415V with a rated insulation voltage of 500V and an impulse withstand voltage of 4000V.
• Frequency: Designed for systems with a 50Hz frequency.
• Breaking Capacity: Offers a breaking and opening capacity of 1500A and a short-circuit current rating of 6kA per EN 61008-1 standards.
• Temperature Stability: Maintains consistent performance at 40A across a wide temperature range, from -25°C to 40°C, without derating.
• Compact Design: Features a modular 4-pole design with a construction size conforming to DIN 43880 standards, with dimensions of 70mm depth, 83mm height, and 70mm width.
• Durability: Built for longevity with 2000 electrical endurance cycles and 4000 mechanical operations.
• Energy Efficiency: Minimal total power loss of 8.1W, with 3.6W per pole at full load.
• Secure Connections: Equipped with screw-type terminals, supporting conductor cross-sections of up to 25mm² for rigid and 16mm² for flexible cables.
• Convenient Labeling: Comes with a transparent product label holder for easy identification and traceability.

Compliance and Standards:

• Certified under IEC 61008-1 for international safety and performance standards.
• RoHS compliant, contributing to environmentally friendly installations.
