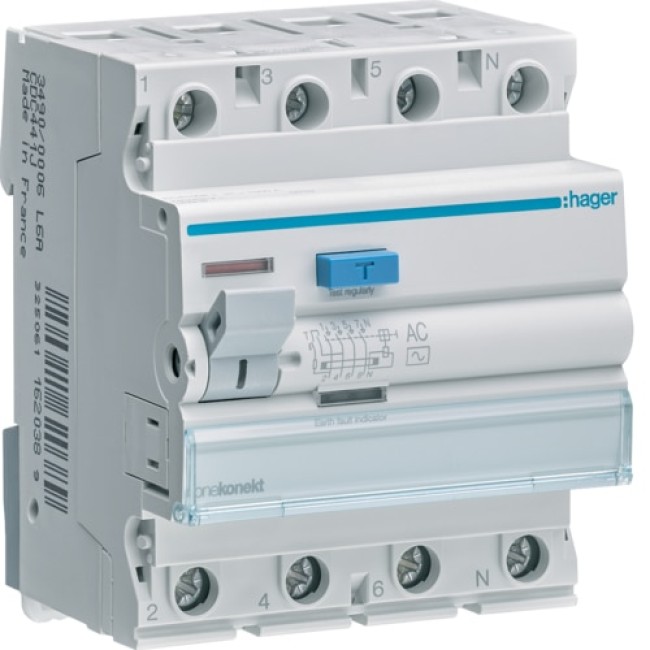

Hager RCCB 4P 40A 100mA AC Class - CEC441J

Description for Hager RCCB 4P 40A 100mA AC Class - CEC441J

The Hager RCCB 4P 40A 100mA AC Class (CEC441J) is a robust residual current circuit breaker engineered for superior electrical safety and reliability. With a rated current of 40A, residual operating current of 100mA, and a breaking capacity of 1.5kA, it ensures effective protection against electrical faults in various applications. Its compliance with IEC 61008-1 standards guarantees reliable performance and safety in residential, commercial, and industrial environments.

Key Features:

• Voltage Ratings: Operates at 240/415V, with a rated insulation voltage of 500V and impulse withstand voltage of 4000V.
• High Protection Capacity: Rated conditional short-circuit current of 6kA with 100mA residual operating current.
• Wide Temperature Range: Reliable operation from -25°C to 40°C, maintaining a consistent 40A rating.
• Compact Design: Dimensions of 83mm (height), 70mm (depth), and 70mm (width) with a 4-module construction.
• Endurance: Offers 2000 electrical cycles and 4000 mechanical operations for long-lasting performance.
• Effortless Connections: Screw-type terminals support a range of conductor sizes with a tightening torque of 2.8 Nm.
• Environmentally Conscious: RoHS-compliant, designed to minimize environmental impact.
• Standards Compliance: Meets IEC 61008-1 standards for dependable protection.

Applications:
The Hager RCCB 4P 40A 100mA is ideal for safeguarding electrical systems in residential, commercial, and industrial setups, providing effective protection against residual currents and ensuring the safety of electrical installations.
