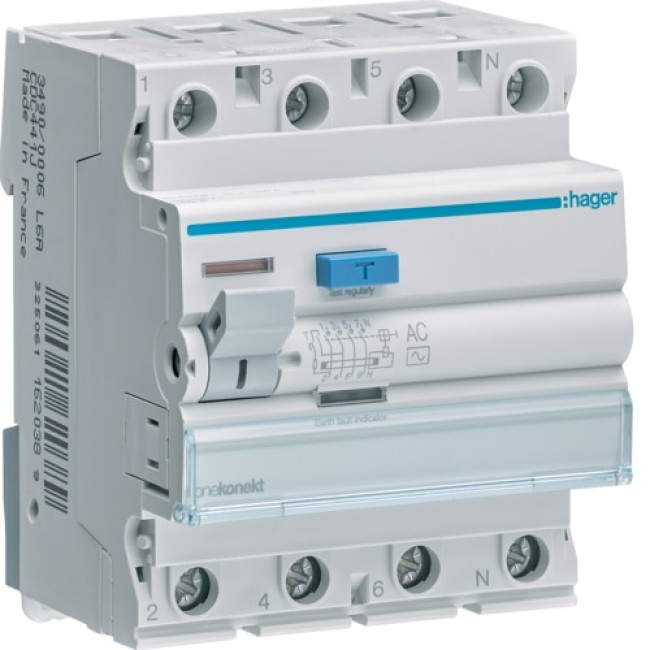

Hager RCCB 4P 25A 30mA AC Class - CDC426J

Description for Hager RCCB 4P 25A 30mA AC Class - CDC426J

The Hager RCCB 4P 25A 30mA AC Class (CDC426J) offers enhanced protection for electrical systems, providing reliable residual current protection for up to 25A with a 30mA sensitivity. This four-pole device is designed to operate efficiently in industrial and commercial installations with a rated operational voltage of 240/415V. With its robust breaking capacity of 1500A and compliance with IEC 61008-1 standards, it ensures protection against leakage currents and faults, preventing electrical hazards. The compact design, durable construction, and easy screw connections make it a versatile solution for demanding environments.

Key Features:

• Comprehensive Protection: Offers 30mA sensitivity to prevent electrical shocks and leakage currents.
• High Performance: Rated for 25A current and withstands up to 6kA short-circuit current.
• Efficient Design: Compact size (70mm depth, 83mm height) for easy integration into modular setups.
• Endurance: Supports up to 2000 electrical cycles and 4000 mechanical operations for long-lasting use.
• Reliable Mounting: Features plastic bottom rail clip and screw-type connections for secure installation.
• Temperature Tolerance: Operates in a wide temperature range from -25°C to 40°C for versatile applications.
• Standard Compliance: Meets IEC 61008-1 standards and RoHS requirements.
