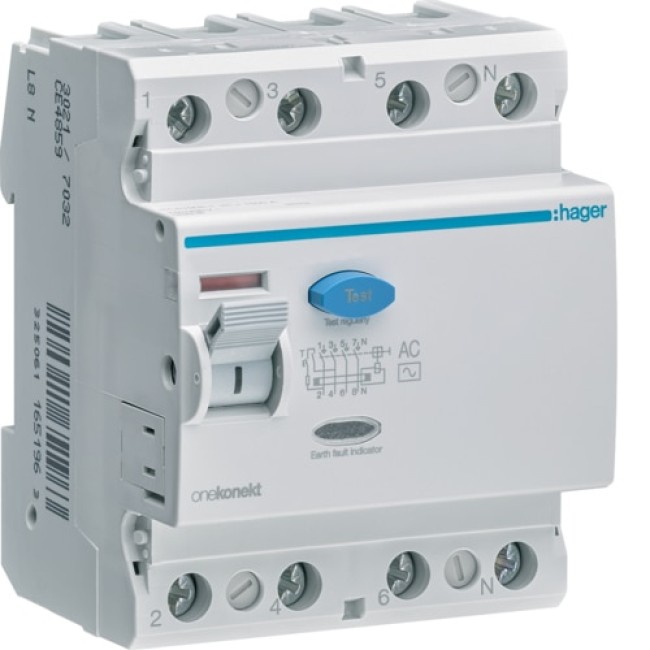

Hager RCCB 4P 100A 30mA AC Class - CD485Z

Description for Hager RCCB 4P 100A 30mA AC Class - CD485Z

The Hager RCCB 4P 100A 30mA AC Class (CD485Z) is a high-performance residual current circuit breaker, offering 100A rated current and 30mA residual current protection for safe and reliable electrical installations. This four-pole device withstands up to 6kA of short-circuit current and has a breaking capacity of 1.5kA. Its broad operational temperature range from -25°C to 40°C ensures that it functions efficiently in various environments. With a long service life, providing 2000 electrical cycles and 4000 mechanical operations, it is ideal for applications that demand both performance and durability. The device features easy screw-type connections and complies with IEC 61008-1 standards for optimal electrical safety.

Key Features:

• High Capacity: 100A rated current with 30mA residual current protection for efficient and secure operation.
• Strong Protection: Withstands up to 6kA of short-circuit current and a breaking capacity of 1.5kA.
• Temperature Resilience: Effective performance across a wide temperature range from -25°C to 40°C.
• Long Endurance: Provides 2000 electrical endurance cycles and 4000 mechanical operations for reliable long-term use.
• Flexible Installation: Screw-type connections allow for easy installation and secure connections.
• Compliance: Fully compliant with IEC 61008-1 standards for safety and reliability.
• Safety: AC residual current type for effective protection against leakage currents.
