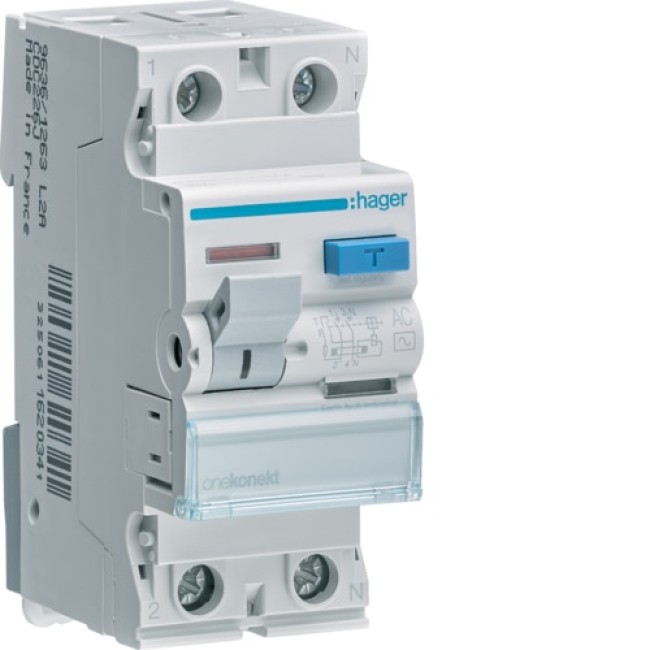

Hager RCCB 2P 63A 30mA AC Class - CDC264J
Model :CDC264J
SKU :
7 days retun policy available
Cash on Delivery available
- Condition: New
Description for Hager RCCB 2P 63A 30mA AC Class - CDC264J
The Hager RCCB 2P 63A 30mA AC Class (Model: CDC264J) provides superior protection against ground faults and leakage currents for residential and commercial applications. This high-performance residual current circuit breaker ensures operational safety with advanced features, meeting IEC 61008-1 standards.
Key Features:
- Rated Current: 63A with a residual operating current sensitivity of 30mA.
- Voltage Rating: Operates efficiently at 240V AC with a 50 Hz frequency.
- Compact Design: Slim 2-module width, ideal for space-saving installations.
- Breaking Capacity: Rated conditional short-circuit current of 6kA per EN 61008-1.
- Durable Performance: Endures 2,000 electrical cycles and 4,000 mechanical operations.
- Temperature Adaptability: Maintains peak performance from -25°C to 40°C, with extended storage temperatures of -55°C to 70°C.
- Secure Connections: Supports flexible (up to 16mm²) and rigid (up to 25mm²) cables with screw terminals.
- Power Efficiency: Total power loss of 8.1W under rated conditions.
- Standards Compliance: Fully adheres to IEC 61008-1 for electrical safety and reliability.
Whether for home or business applications, the Hager CDC264J RCCB delivers dependable, efficient, and user-friendly ground fault protection for enhanced safety and peace of mind.
