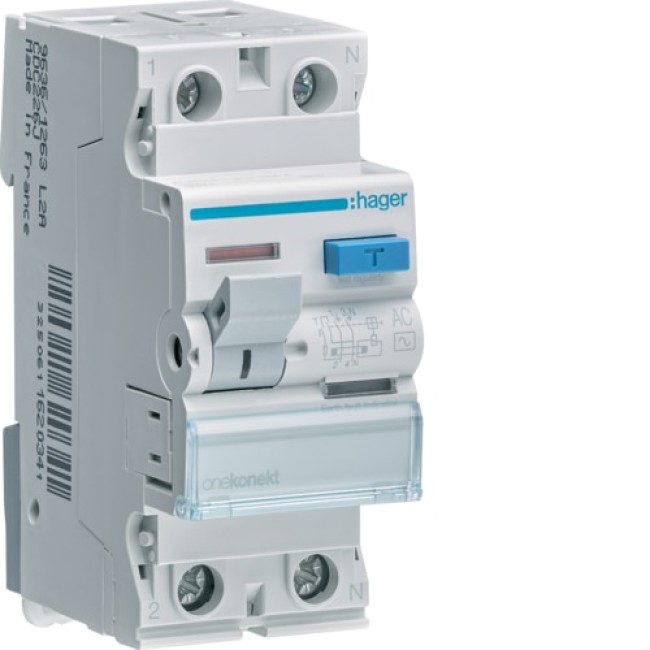

Hager RCCB 2P 40A 30mA AC Class - CDC241J

Description for Hager RCCB 2P 40A 30mA AC Class - CDC241J

The Hager RCCB 2P 40A 30mA AC Class (Model: CDC241J) ensures reliable protection against ground faults and leakage currents. Engineered for safety and durability, this 2-pole residual current circuit breaker is ideal for residential and commercial applications, providing quick and effective fault detection. With a compact design and compliance with IEC 61008-1 standards, it delivers exceptional performance in diverse environments.

Key Features:

• Rated Current: 40A with a residual operating current sensitivity of 30mA.
• Voltage Rating: Operates at 240V AC with a 50 Hz frequency.
• Compact Design: Space-saving 2-module width for easy installation.
• High Breaking Capacity: Withstands a conditional short-circuit current of 6kA as per EN 61008-1.
• Durable Performance: 2,000 electrical and 4,000 mechanical operations for extended lifespan.
• Temperature Resilience: Operates reliably in temperatures from -25°C to 40°C, with storage capability up to -55°C to 70°C.
• Efficient Connections: Screw terminals support flexible (up to 16mm²) and rigid (up to 25mm²) conductors.
• Energy Loss: Total power loss of 6.24W under rated conditions.
• Standards Compliance: Fully meets IEC 61008-1 for electrical safety and reliability.

Whether for safeguarding residential or commercial installations, the Hager CDC241J RCCB offers dependable ground fault protection with user-friendly features and superior performance.
