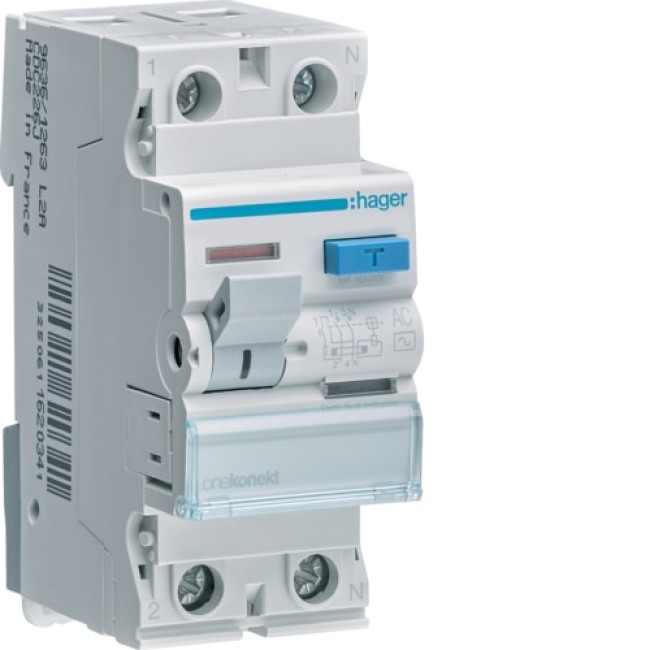

Hager RCCB 2P 40A 100mA AC Class - CEC241J

Description for Hager RCCB 2P 40A 100mA AC Class - CEC241J

The Hager RCCB 2P 40A 100mA AC Class (CEC241J) is a high-performance two-pole residual current circuit breaker designed for electrical protection. It offers a 40A rated current and 100mA residual current, providing effective safety against electrical leakage. This device is capable of withstanding a short-circuit current of 6kA and a breaking capacity of 1500A. The RCCB operates within a wide temperature range from -25°C to 40°C, ensuring reliable protection in various conditions. Featuring screw-type connections, it allows for easy and secure installation. Compliant with IEC 61008-1 standards, the Hager RCCB ensures long-lasting durability and protection for your electrical installations.

Key Features:

• Optimal Protection: 40A rated current with 100mA residual current for enhanced electrical safety.
• High Capacity: Withstands up to 6kA of short-circuit current and a breaking capacity of 1500A.
• Wide Temperature Range: Operational temperature range of -25°C to 40°C for diverse use cases.
• Endurance: Provides 2000 electrical endurance cycles and 4000 mechanical operations for lasting performance.
• Easy Installation: Features screw-type connections for flexible and rigid conductors, ensuring a secure and simple setup.
• Compliant with Standards: Conforms to IEC 61008-1, offering reliable safety for your electrical systems.
