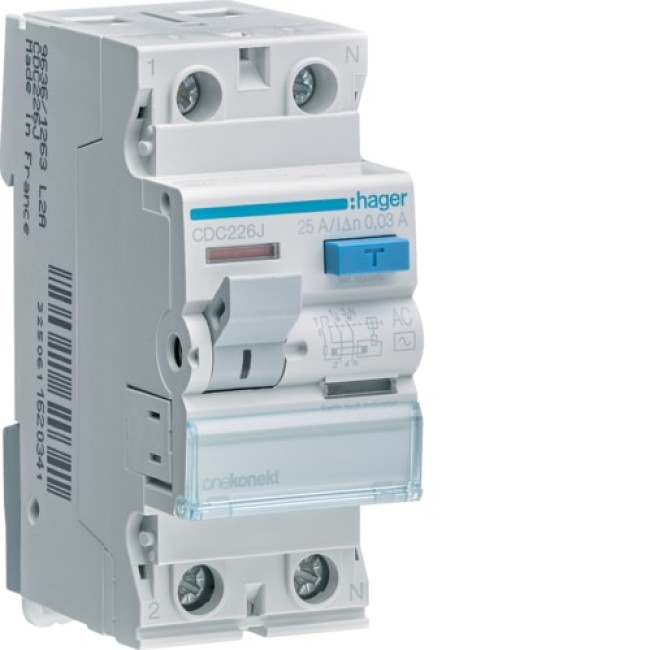

Hager RCCB 2P 25A 30mA AC Class - CDC226J
Model :CDC226J
SKU :
7 days retun policy available
Cash on Delivery available
- Condition: New
Description for Hager RCCB 2P 25A 30mA AC Class - CDC226J
The Hager RCCB 2P 25A 30mA AC Class (Model: CDC226J) delivers superior protection against electrical ground faults and leakage currents. This 2-pole residual current circuit breaker is designed for residential and commercial safety, ensuring quick response with a 30mA sensitivity. Compact and reliable, it conforms to IEC 61008-1 standards and offers robust performance even in demanding environments.
Key Features:
- Rated Current: 25A with a residual operating current of 30mA for enhanced protection.
- Voltage Rating: Operates at 240V AC with a frequency of 50 Hz.
- Compact Design: Space-efficient 2-module width for versatile installation.
- Endurance: Durable with 2,000 electrical and 4,000 mechanical operations.
- High Breaking Capacity: Withstands 6kA conditional short-circuit current as per EN 61008-1.
- Ease of Installation: Screw terminals accommodate flexible (up to 16mm²) and rigid (up to 25mm²) cables.
- Temperature Resilience: Operates efficiently between -25°C to 40°C with storage capability up to -55°C to 70°C.
- Standards Compliance: Fully compliant with IEC 61008-1 for safety and reliability.
Ideal for environments requiring robust ground fault protection, the Hager CDC226J RCCB ensures safety, efficiency, and ease of installation.
