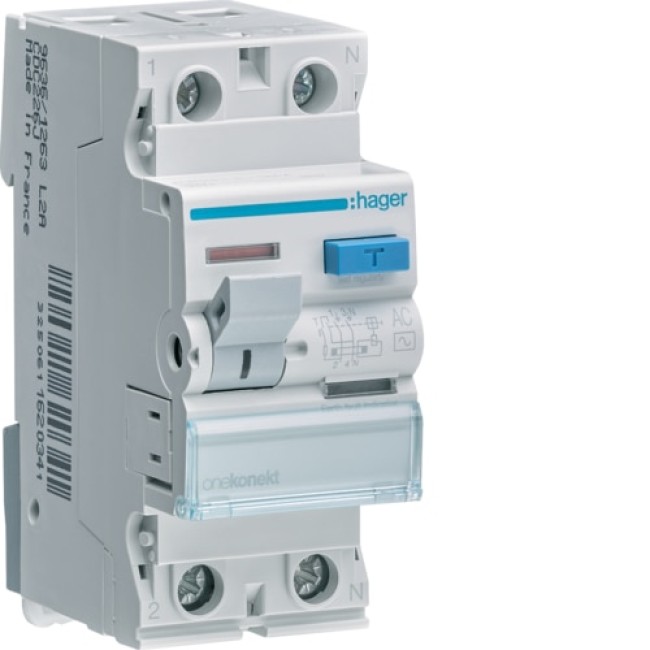

Hager RCCB 2P 25A 100mA AC Class - CEC226J

Description for Hager RCCB 2P 25A 100mA AC Class - CEC226J

The Hager RCCB 2P 25A 100mA AC Class (CEC226J) is a reliable and efficient two-pole residual current circuit breaker, designed to protect against leakage currents. With a 25A rated current and 100mA residual current protection, this device provides enhanced safety for electrical installations. It is capable of withstanding a 6kA short-circuit current and has a breaking capacity of 1500A. The device features a wide operational temperature range from -25°C to 40°C, ensuring versatility across various environments. It also includes screw-type connections for easy and secure installation. Compliant with IEC 61008-1 standards, this RCCB ensures high performance and safety in protecting electrical circuits.

Key Features:

• Reliable Protection: 25A rated current with 100mA residual current for electrical safety.
• High Capacity: Withstands up to 6kA of short-circuit current and a breaking capacity of 1500A.
• Temperature Resilience: Operational temperature range of -25°C to 40°C for versatile use.
• Long Endurance: Offers 2000 electrical endurance cycles and 4000 mechanical operations for long-lasting protection.
• Easy Installation: Features screw-type connections for both flexible and rigid conductors for secure installation.
• Compliance: Conforms to IEC 61008-1 standards for reliable safety and protection.
