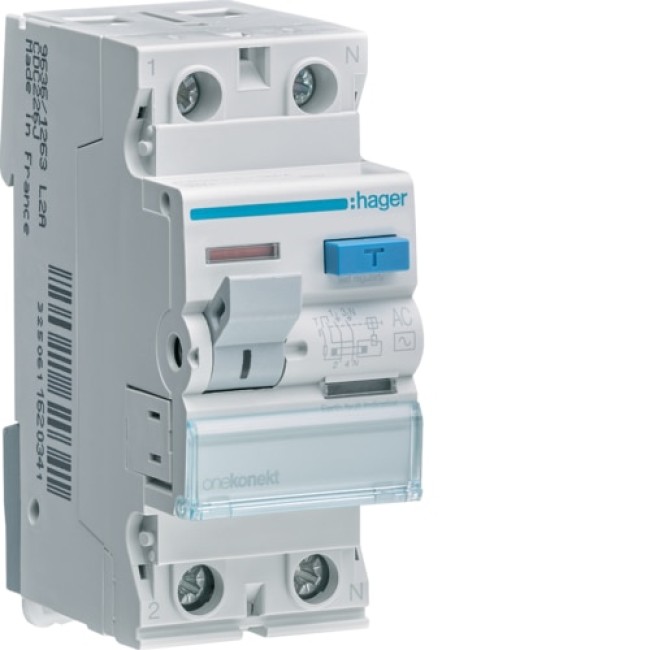

Hager RCCB 2P 16A 10mA AC Class - CCC217J

Description for Hager RCCB 2P 16A 10mA AC Class - CCC217J

The Hager RCCB 2P 16A 10mA AC Class (Model: CCC217J) offers advanced protection against ground faults and leakage currents in residential and commercial electrical systems. This 2-pole residual current circuit breaker ensures user safety with a sensitive 10mA tripping threshold and complies with IEC 61008-1 standards. Designed for efficient performance and reliability, it provides a rated operational voltage of 240V AC and is compact enough for installations requiring minimal space.

Key Features:

• Rated Current: 16A with a 10mA residual operating current for enhanced safety.
• Voltage Rating: Operates at 240V AC with a 50 Hz frequency.
• Compact Design: 2 modules wide for space-efficient installations.
• High-Endurance: 2,000 electrical and 4,000 mechanical operations for long-lasting performance.
• Standards Compliance: Conforms to IEC 61008-1 for reliability and safety.
• Robust Build: Withstands 6kA short-circuit conditional current.
• User-Friendly Installation: Features screw terminals supporting flexible (up to 16mm²) and rigid (up to 25mm²) cables.
• Durable Construction: Operates within a temperature range of -25°C to 40°C, with storage capability up to -55°C to 70°C.

Ideal for use in environments requiring sensitive leakage current detection, the Hager CCC217J RCCB is a trusted choice for both residential and industrial applications.
