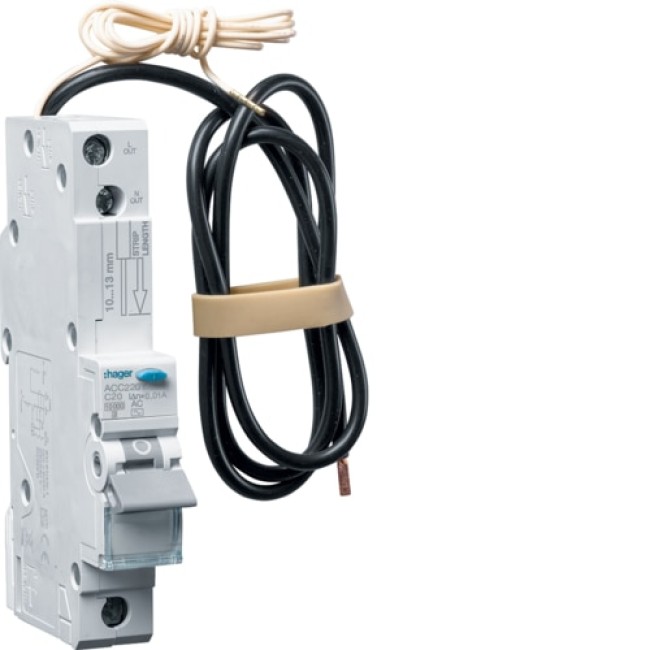

Hager RCBO 1P 10kA C-20A 10mA AC - ACC220Y

Description for Hager RCBO 1P 10kA C-20A 10mA AC - ACC220Y

The Hager RCBO 1P 10kA C-20A 10mA AC - ACC220Y is a high-performance Residual Current Circuit Breaker with Overcurrent Protection (RCBO) designed to ensure electrical safety in residential, commercial, and industrial settings. Featuring a robust 10kA breaking capacity and a compact 1P module design, this device offers reliable protection against overcurrent, short circuits, and earth leakage. Its C-curve characteristic is ideal for circuits with medium inrush currents, while its 20A rating and 10mA sensitivity deliver precise operational efficiency.

This RCBO adheres to IEC 61009-1 standards, ensuring quality and performance. It includes versatile top and bottom connection options for flexible wiring configurations, making it suitable for various installations. The device is engineered to withstand diverse environmental conditions and offers excellent endurance with a mechanical lifespan of 10,000 cycles.

Key Features:

• Robust Protection: 10kA short circuit breaking capacity and 10mA sensitivity for enhanced safety.
• Versatile Voltage Range: Rated operational voltage of 230/240V AC with a frequency of 50/60 Hz.
• Compact Design: Slim 1-module width for space-saving installations.
• C-Curve Characteristics: Ideal for applications with moderate inrush currents.
• Durable Construction: Electric endurance of 2,000 cycles and mechanical lifespan of 10,000 operations.
• User-Friendly: Equipped with aligned terminals and accessible screw connections for efficient wiring.
• Certified Safety: Complies with IEC 61009-1 standards and RoHS conformant.
• Wide Temperature Range: Operates reliably in temperatures from -5°C to 40°C.

Specifications:

• Rated Current: 20A
• Residual Current: 10mA
• Rated Insulation Voltage: 250V
• Dimensions: 115mm (H) x 17.8mm (W) x 70mm (D)
• Power Loss: 6.5W (Total)

Enhance your electrical system's safety and efficiency with the Hager RCBO 1P 10kA C-20A 10mA AC - ACC220Y.
