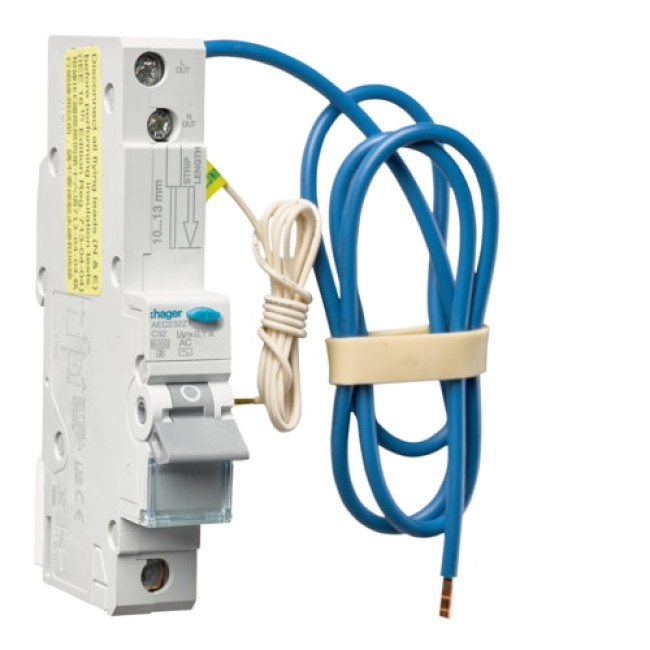

Hager RCBO 1M 1P 6kA C-32A 100mA AC - AEC232Z

Description for Hager RCBO 1M 1P 6kA C-32A 100mA AC - AEC232Z

The Hager RCBO 1M 1P 6kA C-32A 100mA AC - AEC232Z is a high-quality Residual Current Breaker with Overload Protection, designed to provide superior protection for electrical circuits. This 1-pole device offers reliable circuit protection against both residual currents and overloads, preventing electrical hazards such as shocks or fires. With a rated current of 32A and a breaking capacity of 6kA, it meets the requirements of IEC60898-1, ensuring safety in both residential and commercial installations.

Designed for easy installation, the Hager RCBO features screw terminals and a metallic isolated bottom rail clip, making it suitable for flush-mounting in standard electrical distribution boards. It operates within a temperature range of -5°C to 40°C and offers enhanced durability with 2000 electrical cycles and 10,000 mechanical operations. This RCBO also boasts a high impulse withstand voltage of 4000V, ensuring protection from surges and electrical spikes.

Whether you're upgrading an existing system or installing new electrical circuits, the Hager RCBO provides reliable and consistent protection for peace of mind.

Key Features:

• Rated Short Circuit Breaking Capacity: 6 kA (IEC60898-1)
• Rated Operational Voltage: 230/240 V AC
• Rated Current: 32 A
• Residual Operating Current: 100 mA
• Rated Insulation Voltage: 250 V
• Impulse Withstand Voltage: 4000 V
• Magnetic Trip Setting: 5/10 In
• Thermal Trip Range: 1.13 to 1.45 In
• Endurance: 2000 electrical cycles, 10,000 mechanical operations
• Temperature Range: -5°C to 40°C
• Dimensions: 70 mm depth, 115 mm height, 17.8 mm width
• Connection Type: Screw terminals
• Compliance: IEC 61009-1, RoHS Compliant

Benefits:

• Provides essential protection against electric shocks and overloads
• Ideal for both residential and commercial electrical installations
• Ensures safe operation even in harsh environmental conditions
• Long-lasting durability with high electrical and mechanical endurance
• Simple and secure installation with screw terminals and BIconnect mounting
