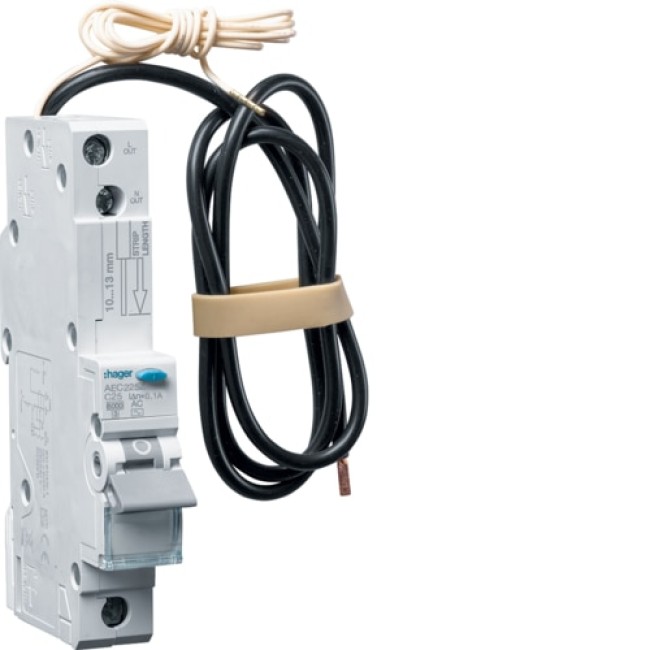

Hager RCBO 1M 1P 6kA C-25A 100mA AC - AEC225Z

Description for Hager RCBO 1M 1P 6kA C-25A 100mA AC - AEC225Z

The Hager RCBO 1M 1P 6kA C-25A 100mA AC - AEC225Z combines residual current protection and overcurrent protection into one compact device, offering essential safety for electrical circuits. Designed for both residential and light commercial use, this high-performance RCBO ensures reliable operation even under demanding conditions. With a 6kA breaking capacity, this device offers robust protection against electrical faults, while its 100mA residual current sensitivity ensures safety against earth leakage.

The 1P design of the RCBO makes it a versatile solution for single-phase applications. It is also equipped with thermal-magnetic protection (Curve C), which helps avoid tripping in cases of moderate overcurrent while providing rapid response to more severe short circuits. The AEC225Z model is suitable for operation in a wide temperature range (-5°C to 40°C), making it adaptable to varying climates.

Key Bullet Points:

• Rated Breaking Capacity: 6 kA, in accordance with IEC60898-1 standards.
• Rated Current: 25 A
• Residual Current Sensitivity: 100 mA AC for enhanced protection.
• Curve Type: C (Thermal-Magnetic) for reliable operation under various load conditions.
• Rated Operational Voltage: 230/240 V AC
• Rated Insulation Voltage: 250 V
• Rated Impulse Withstand Voltage: 4000 V
• Frequency: 50/60 Hz
• Temperature Range for Operation: -5°C to 40°C
• Compact 1-Module Design: Ideal for installations with space limitations.
• Endurance: 2000 electrical cycles and 10,000 mechanical operations.
• Suitable for Flush-Mounting: Yes
• Connection Type: Screw terminals for both flexible and rigid conductors.
• Environmental Protection: Designed for a maximum humidity of 95% at 55°C.
• Safety Standards: Complies with IEC 61009-1 and RoHS regulations.
• Non-Selectable Type: Not suitable for selective coordination but ideal for general protection needs.
