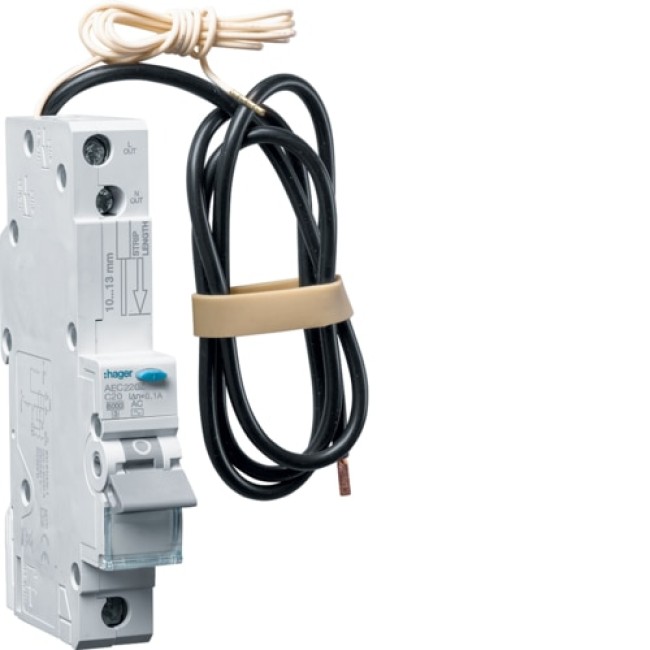

Hager RCBO 1M 1P 6kA C-20A 100mA AC - AEC220Z

Description for Hager RCBO 1M 1P 6kA C-20A 100mA AC - AEC220Z

The Hager RCBO 1M 1P 6kA C-20A 100mA AC - AEC220Z is an advanced residual current breaker with overcurrent protection, designed to safeguard electrical installations from the hazards of earth leakage and short circuits. This device combines high performance and reliability, making it an ideal choice for residential and light commercial applications. With a rated operational voltage of 230/240V and a breaking capacity of 6kA, this RCBO ensures optimal protection against electrical faults, while maintaining smooth operation even under varying environmental conditions.

Key features of the Hager RCBO include its compact 1-module design, compliance with IEC 61009-1 standards, and its ability to withstand temperature fluctuations, ensuring stable performance in temperatures ranging from -5°C to 40°C. Additionally, it features a 100mA residual current sensitivity for improved safety and has a thermal magnetic curve (C) suitable for various protection needs.

Key Bullet Points:

• Rated Breaking Capacity: 6 kA
• Rated Operational Voltage: 230/240 V
• Residual Current Sensitivity: 100mA AC
• Rated Current: 20 A
• Curve Type: C (Thermal-Magnetic)
• Compliant with IEC 61009-1 Standards
• Temperature Range for Operation: -5°C to 40°C
• Compact 1-Module Design for Easy Installation
• Rated Insulation Voltage: 250 V
• Rated Impulse Withstand Voltage: 4000 V
• Endurance: 2000 electrical cycles and 10,000 mechanical operations
• Suitable for Flush-Mounting: Yes
• Connection Type: Screw terminals for both flexible and rigid conductors
