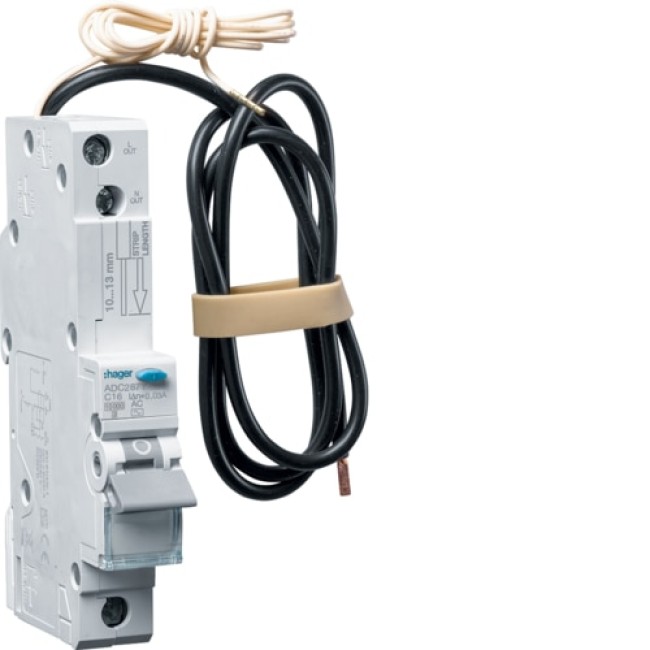

Hager RCBO 1M 1P 10kA C-16A 30mA AC - ADC287Y

Description for Hager RCBO 1M 1P 10kA C-16A 30mA AC - ADC287Y

The Hager RCBO 1M 1P 10kA C-16A 30mA AC - ADC287Y is a high-performance residual current breaker with overload protection, designed to safeguard electrical circuits from overcurrent and residual current faults. This device features a robust 10kA breaking capacity and a 30mA residual current rating, making it suitable for both residential and commercial electrical installations. With its compact design, the RCBO offers efficient protection for sensitive circuits and prevents the risk of electrical shocks and fires. The device is rated for 230/240 V AC supply voltage and operates efficiently within a frequency range of 50/60 Hz. Its advanced thermal-magnetic tripping mechanism ensures reliable operation across various temperature conditions. With a sleek, modular design, this RCBO is easy to install and provides long-lasting durability, ensuring safety and peace of mind for any electrical system.

Key Bullet Points:

• Rated Breaking Capacity: 10 kA (IEC60898-1)
• Rated Residual Operating Current: 30 mA
• Rated Current: 16 A
• Curve Type: C (for residential and light commercial use)
• Rated Insulation Voltage: 250 V
• Rated Impulse Withstand Voltage: 4000 V
• Operating Voltage: 230/240 V AC
• Magnetic Tripping Current: 5 to 10 times the rated current
• Endurance: 2000 electrical cycles and 10,000 mechanical operations
• Temperature Rating: -5°C to 40°C operational range
• Power Loss: 4.9 W under rated current
• Dimensions: 115 mm (height) x 17.8 mm (width) x 70 mm (depth)
• Connection Type: Screw connection for flexible and rigid conductors
• Standards Compliance: IEC 61009-1, RoHS compliant, Halogen-free
