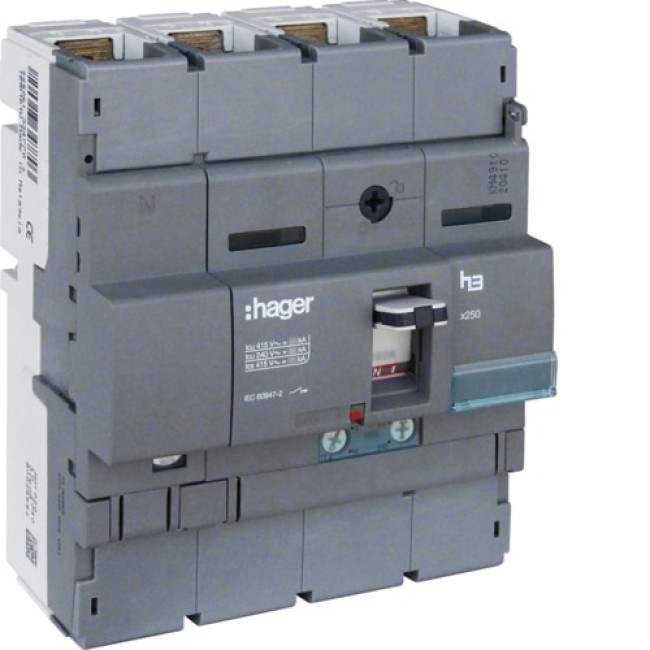

Hager Moulded Case Circuit Breaker X250 4P 25kA 250A TM - HHB251Z

Description for Hager Moulded Case Circuit Breaker X250 4P 25kA 250A TM - HHB251Z

The Hager Moulded Case Circuit Breaker X250 4P 25kA 250A TM - HHB251Z is a robust solution for enhanced electrical protection in industrial and commercial applications. Designed to meet IEC 60947-2 standards, this MCCB features advanced thermal and magnetic trip functionality, delivering reliable overload and short-circuit protection.

Key Features:

• Rated Current: 250A with a magnetic adjustment range up to 2750A.
• Breaking Capacity: Rated ultimate short-circuit breaking capacity of 25kA at 400/415V AC.
• Voltage Ratings: Operational voltage of 220/415V, insulation voltage of 800V, and impulse withstand voltage of 8kV.
• 4-Pole Design: Includes neutral protection with 100% thermal setting current on the neutral pole.
• Configuration: 8-module compact design with front terminal connections.
• Efficiency: Low power loss of 48W under IN (16W per pole).

Additional Specifications:

• Frequency: Operates at 50/60 Hz.
• Response Time: Instantaneous thermal protection trip time with a 10ms opening response.
• Durability: Engineered for 1000 electrical cycles and 4000 mechanical operations.
• Installation Options: Suitable for DIN rail mounting using an optional adapter.

Certifications and Standards:

• Compliance: Certified to IEC 60947-2, REACH, and RoHS standards.

Environmental and Use Conditions:

• Operating Temperature: -25°C to 70°C.
• Altitude: Suitable for installations up to 2000m.
• Humidity Protection: Compatible with all climatic conditions.

This high-performance MCCB ensures safety, reliability, and efficiency in critical electrical systems.
