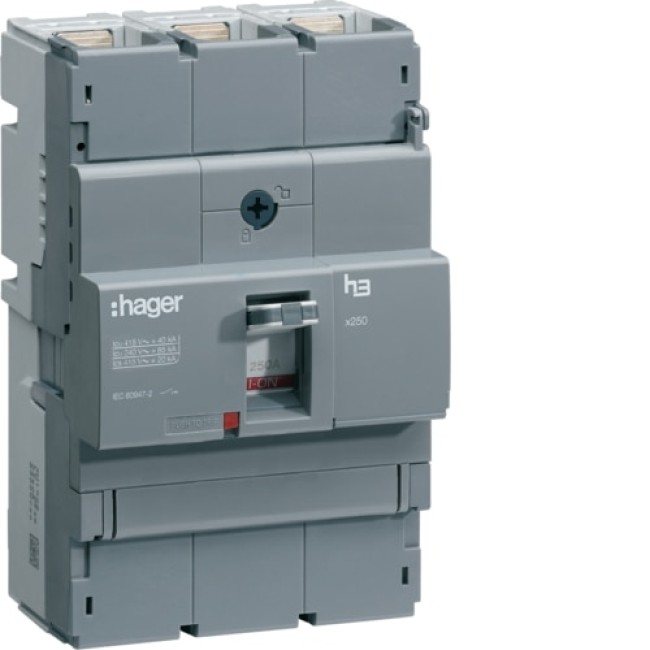

Hager Moulded Case Circuit Breaker x250 3P 40kA 250A TM - HNB250Z
Model :HNB250Z
SKU :
7 days retun policy available
Cash on Delivery available
- Condition: New
Description for Hager Moulded Case Circuit Breaker x250 3P 40kA 250A TM - HNB250Z
The Hager Moulded Case Circuit Breaker x250 HNB250Z is engineered for superior circuit protection in industrial and commercial environments. Featuring a rated current of 250A and a breaking capacity of 40kA at 415V AC, this 3-pole breaker offers reliable and robust performance. Its thermal-magnetic trip unit (TM F/F) ensures efficient overcurrent and short-circuit protection.
Key Features:
- Rated Current: 250A with precise thermal-magnetic protection.
- Breaking Capacity: 40kA at 415V AC, compliant with IEC 60947-2 standards.
- Voltage Ratings: Rated insulation voltage of 800V and impulse withstand voltage of 8kV.
- Durability: Withstands 1,000 electrical cycles and 4,000 mechanical operations.
- Energy Efficiency: Power loss per pole at 16W for efficient operation.
- Flexible Installation: Supports flexible (35-150mm²) and rigid (35-185mm²) cables using front terminal connections.
- Standards Compliance: Certified to IEC 60947-2, REACH, and RoHS standards for safety and quality.
- Wide Operating Range: Functions effectively in temperatures from -25°C to 70°C and altitudes up to 2,000m.
- Compact Design: Supports DIN rail mounting with an optional adaptor.
Upgrade your electrical system with the Hager x250 HNB250Z moulded case circuit breaker for enhanced safety and reliability.
