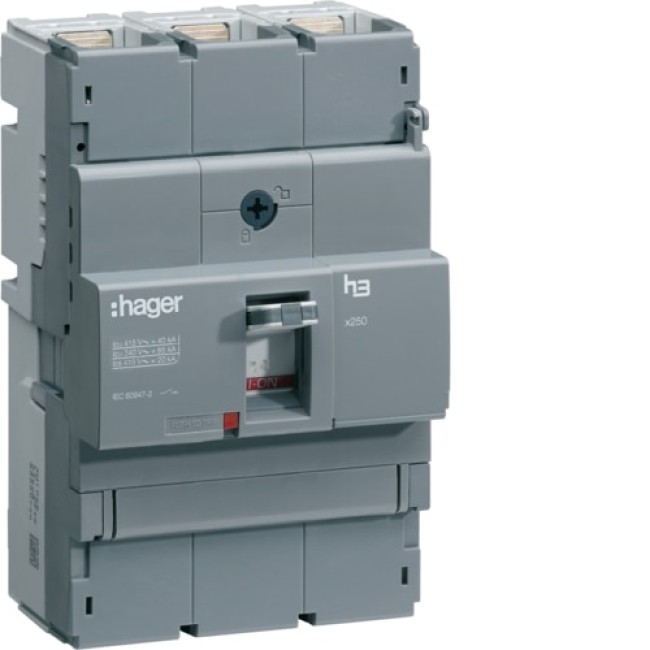

Hager Moulded Case Circuit Breaker x250 3P 40kA 160A TM - HNB160Z
Model :HNB160Z
SKU :
7 days retun policy available
Cash on Delivery available
- Condition: New
Description for Hager Moulded Case Circuit Breaker x250 3P 40kA 160A TM - HNB160Z
The Hager Moulded Case Circuit Breaker x250 HNB160Z offers high-performance circuit protection for industrial and commercial systems. This 3-pole, 40kA breaker supports a rated current of 160A, ensuring safety and reliability in electrical circuits. Featuring a thermal-magnetic trip unit (TM F/F), it delivers effective overcurrent and short-circuit protection. Designed for systems operating at 220/415V and 50/60Hz, the HNB160Z is built to meet stringent safety and performance standards.
Key Features:
- Rated Current: 160A with thermal-magnetic protection for dependable performance.
- Breaking Capacity: 40kA at 415V AC (compliant with IEC 60947-2).
- Voltage Specifications: Rated insulation voltage of 800V and impulse withstand voltage of 8kV.
- Durability: Supports 1,000 electrical and 4,000 mechanical cycles for long-term use.
- Energy Efficiency: Low power loss per pole at 10.9W.
- Flexible Installation: Compatible with flexible conductors (35-150mm²) and rigid cables (35-185mm²) via terminal front connections.
- Standards Compliance: Fully certified to IEC 60947-2, REACH, and RoHS standards.
- Extreme Conditions Ready: Operates efficiently in temperatures ranging from -25°C to 70°C.
- Compact Design: Supports DIN rail mounting with an optional adaptor.
Enhance the safety and efficiency of your electrical systems with the Hager x250 HNB160Z.
