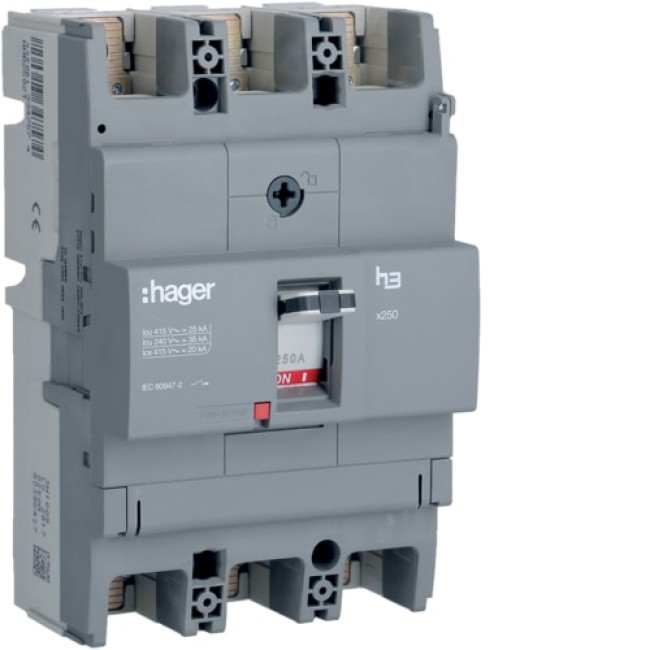

Hager Moulded Case Circuit Breaker X250 3P 25kA 250A TM - HHB250Z

Description for Hager Moulded Case Circuit Breaker X250 3P 25kA 250A TM - HHB250Z

The Hager Moulded Case Circuit Breaker X250 3P 25kA 250A TM - HHB250Z is designed for superior electrical protection in industrial and commercial systems. Engineered to meet IEC 60947-2 standards, this MCCB combines high-performance thermal and magnetic trip functionalities for reliable short-circuit and overload protection.

Key Features:

• Rated Current: 250A with magnetic adjustment range up to 2750A.
• Breaking Capacity: Rated ultimate short-circuit breaking capacity of 25kA at 400/415V AC.
• Voltage Ratings: Operational voltage of 220/415V, insulation voltage of 800V, and impulse withstand voltage of 8kV.
• Compact Design: Space-saving 6-module configuration with front terminal connections.
• Efficiency: Low total power loss of 48W under IN (16W per pole).

Additional Specifications:

• Frequency: Operates at 50/60 Hz.
• Response Time: Instantaneous thermal protection trip time with a 10ms response when opening.
• Durability: Tested for 1000 electrical cycles and 4000 mechanical operations.
• Installation Options: Compatible with DIN rail mounting using an optional adapter.

Certifications and Standards:

• Compliance: Certified to IEC 60947-2, REACH, and RoHS standards.

Environmental and Use Conditions:

• Operating Temperature: -25°C to 70°C.
• Altitude: Suitable for applications up to 2000m.
• Humidity Protection: For all climatic conditions.

This MCCB delivers dependable performance, ensuring safety and efficiency in critical electrical installations.
