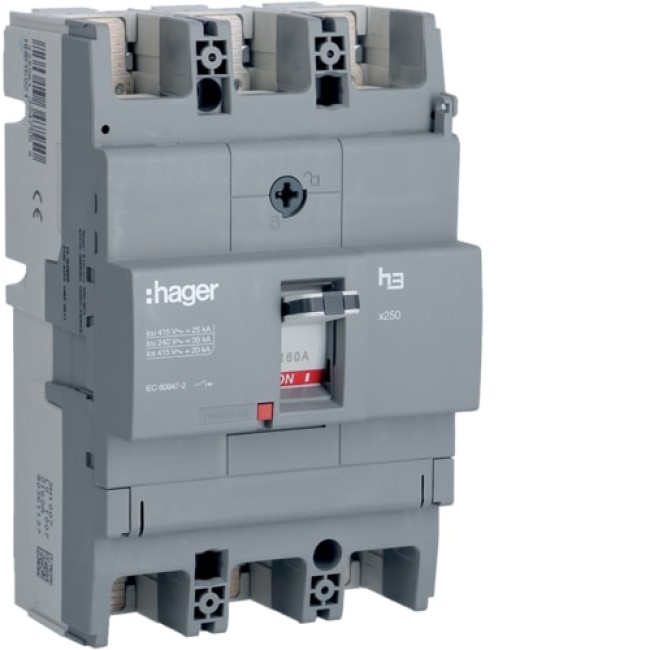

Hager Moulded Case Circuit Breaker X250 3P 25kA 160A TM - HHB160Z

Description for Hager Moulded Case Circuit Breaker X250 3P 25kA 160A TM - HHB160Z

The Hager Moulded Case Circuit Breaker X250 3P 25kA 160A TM - HHB160Z delivers advanced protection for industrial and commercial electrical systems. Designed for reliability, it adheres to IEC 60947-2 standards and offers excellent thermal and magnetic trip performance.

Key Features:

• Rated Current: 160A with magnetic adjustment up to 2080A.
• Breaking Capacity: Up to 25kA at 400/415V AC for superior short-circuit protection.
• Voltage Ratings: Operates at 220/415V with an insulation voltage of 800V.
• Endurance: Rated for 1000 electrical cycles and 4000 mechanical operations.
• Compact Design: 6-module configuration for space efficiency.
• Connection Options: Flexible cable support (35-150mm²) and rigid cable support (35-185mm²).

Additional Specifications:

• Frequency: 50/60 Hz.
• Response Time: Fast tripping response within 10ms.
• Power Loss: Total loss under IN is 32.6W (10.9W per pole).
• Installation: Front connection with optional DIN rail mounting adapter.

Certifications and Standards:

• Compliance: IEC 60947-2 certified, REACH and RoHS conforming.

Environmental and Use Conditions:

• Operating Temperature: -25°C to 70°C.
• Altitude: Suitable for installations up to 2000m.
• Humidity: Air humidity protection for all climates.

This MCCB is a high-performance solution for ensuring safety and efficiency in demanding electrical applications.
