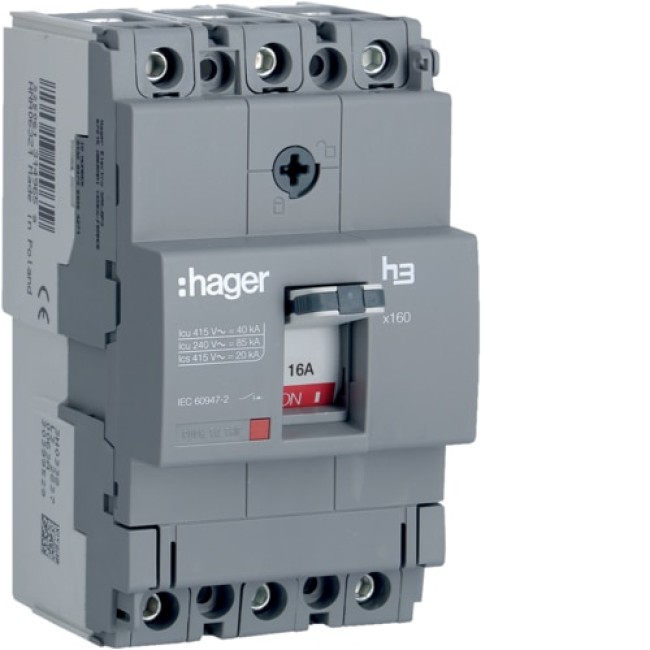

Hager Moulded Case Circuit Breaker x160 3P 40kA 16A - HNA016Z
Model :HNA016Z
SKU :
7 days retun policy available
Cash on Delivery available
- Condition: New
Description for Hager Moulded Case Circuit Breaker x160 3P 40kA 16A - HNA016Z
The Hager Moulded Case Circuit Breaker (MCCB) x160 3P 40kA 16A - HNA016Z is a compact and efficient protection device for electrical systems, ideal for industrial and commercial applications. Featuring thermal-magnetic trip technology, it adheres to IEC 60947-2 standards for enhanced reliability and safety.
Key Features:
- Rated Current: 16A with thermal protection setting of xIN = 1.
- Breaking Capacity: Up to 40kA at 415V AC for robust short-circuit protection.
- Voltage Ratings: Operational voltage of 220/415V and insulation voltage of 690V.
- Compact Design: Width of 4.5 modules with front screw connection.
- Power Efficiency: Low total power loss of 5.3W, 1.8W per pole.
- Durability: 1000 electrical cycles and 4000 mechanical operations.
- Temperature Range: Operates between -25°C to 70°C for diverse environments.
- Installation: Compatible with optional DIN rail mounting adapters.
Designed for optimal performance and durability, the Hager MCCB HNA016Z offers secure and efficient electrical protection, making it a trusted choice for demanding use cases.
