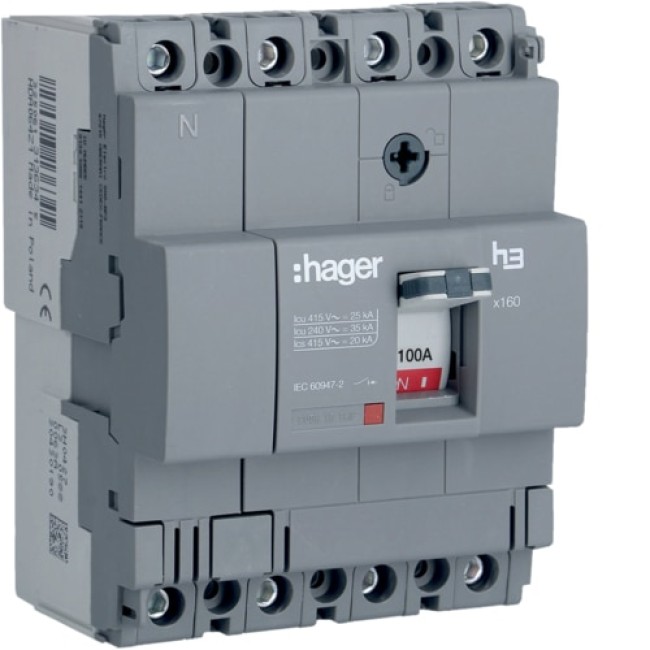

Hager Moulded Case Circuit Breaker h3 x160 TM FIX 4P4D 100A 25kA - HHA101Z
Model :HHA101Z
SKU :
7 days retun policy available
Cash on Delivery available
- Condition: New
Description for Hager Moulded Case Circuit Breaker h3 x160 TM FIX 4P4D 100A 25kA - HHA101Z
The Hager Moulded Case Circuit Breaker (MCCB) h3 x160 TM FIX 4P4D 100A 25kA CTC - HHA101Z ensures reliable and efficient electrical system protection. This 4P4D MCCB is engineered for high performance with thermal-magnetic trip technology and compliance with IEC 60947-2 standards, making it a versatile solution for industrial and residential applications.
Key Features:
- Rated Current: 100A with thermal adjustment range of 100A.
- Breaking Capacity: Up to 25kA at 415V AC for robust short-circuit protection.
- Voltage Rating: Operational voltage of 220/415V and insulation voltage of 690V.
- Compact Design: Height 130 mm, width 100 mm, depth 68 mm.
- Power Efficiency: Total power loss of 39W, with 13W per pole.
- Endurance: 1000 electrical cycles and 4000 mechanical operations.
- Installation: Front connection with optional DIN rail mounting adapter.
- Customizable: Accessorization and optional motor drive compatibility.
Built for durability and ease of integration, the Hager MCCB HHA101Z provides reliable electrical protection in demanding conditions, ensuring safety and performance.
