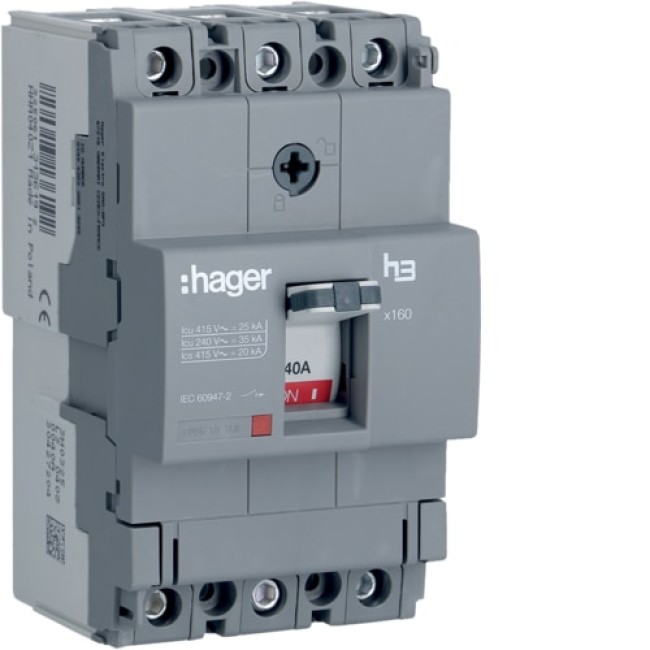

Hager Moulded Case Circuit Breaker H3 X160 TM FIX 3P3D 40A 25kA CTC - HHA040Z

Description for Hager Moulded Case Circuit Breaker H3 X160 TM FIX 3P3D 40A 25kA CTC - HHA040Z

The Hager X160 H3 Moulded Case Circuit Breaker (MCCB) 40A offers top-notch protection against overloads and short circuits in industrial and commercial applications. Designed with a 25kA short-circuit breaking capacity, this breaker provides secure protection for electrical systems. The thermal-magnetic trip unit (TM F/F) ensures reliable protection, while its compact design makes it easy to install. This breaker complies with IEC 60947-2 standards, ensuring safe and durable electrical protection.

Key Features:

• Rated Current: 40A, with adjustable thermal protection for varying temperature conditions.
• High Breaking Capacity:
  • 35kA at 230V AC and 240V AC
  • 25kA at 400V AC and 415V AC
  • 25kA at 380V AC
• Thermal-Magnetic Trip Unit: Ensures precise protection against overloads and short circuits.
• Compact Design: 3P3D type, 3-pole, designed for 3-phase systems, with dimensions of 75mm width and 130mm height, easy to install on DIN rails.
• Endurance: 1000 electrical cycles and 4000 mechanical operations for long-lasting reliability.
• Thermal Adjustment Range: 40A, adjustable based on operational temperature conditions.
• Screw-Type Connection: Supports flexible (4 to 70mm²) and rigid (4 to 95mm²) cables for easier installation.
• Motor Drive Optional: Provides additional control capabilities.
• Compliant with IEC 60947-2 Standards: Ensures reliable and safe electrical installations.
• Temperature Range: Operates efficiently from -25°C to +60°C.
• Altitude Resistance: Rated for up to 2000 meters altitude.
• Power Loss: Total power loss of 11W under rated current, with 3.7W power loss per pole at In.

Specifications:

• Rated Operational Voltage: 220V / 415V AC
• Rated Insulation Voltage: 690V
• Rated Impulse Withstand Voltage: 8kV
• Rated Ultimate Short-Circuit Breaking Capacity:
  • 35kA at 230V AC and 240V AC
  • 25kA at 400V AC and 415V AC
  • 25kA at 380V AC
• Endurance: 1000 electrical cycles, 4000 mechanical operations
• Temperature Range: Operates from -25°C to +60°C
• Connection Type: Screw-type, suitable for flexible and rigid cables
• Standards Compliant: IEC 60947-2 for reliable electrical protection
• Environmental Protection: Degree of pollution 3 as per IEC 60664/60947-2

The Hager X160 H3 40A MCCB ensures high performance, safety, and compliance with international standards, making it ideal for commercial and industrial use.
