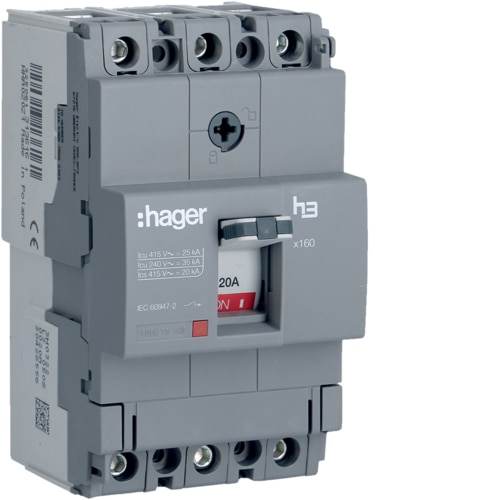

Hager Moulded Case Circuit Breaker H3 X160 TM FIX 3P3D 20A 25kA CTC - HHA020Z

Description for Hager Moulded Case Circuit Breaker H3 X160 TM FIX 3P3D 20A 25kA CTC - HHA020Z

The Hager X160 H3 Moulded Case Circuit Breaker (MCCB) 20A is a high-quality protection solution for 3-phase, 3-pole electrical systems. Designed with a 25kA short-circuit breaking capacity, this MCCB ensures robust protection against overloads and short circuits. Featuring a thermal-magnetic trip unit (TM F/F), it provides reliable protection for various electrical installations. The breaker is fully compliant with IEC 60947-2 standards, ensuring long-term performance and safety.

Key Features:

• Rated Current: 20A, adjustable thermal protection for a wide range of operating temperatures.
• High Breaking Capacity: 35kA at 230V AC and 240V AC, and 25kA at 400V AC and 415V AC, offering reliable short-circuit protection.
• Thermal-Magnetic Trip Unit: Ensures overload and short-circuit protection with high accuracy and reliability.
• Compact Design: 3P3D type, designed for 3-phase systems with a width of 75mm and height of 130mm for easy installation.
• Rated Ultimate Short-Circuit Breaking Capacity:
  • 35kA at 230V AC and 240V AC
  • 25kA at 400V AC and 415V AC
  • 25kA at 380V AC
• Endurance: 1000 electrical cycles and 4000 mechanical operations for durable performance.
• Thermal Adjustment Range: 20A, offering adjustable settings based on operational temperature for precise protection.
• Connection Type: Screw-type connection for secure and easy installation with flexible (4 to 70mm²) and rigid (4 to 95mm²) cables.
• Standards Compliant: IEC 60947-2 for reliable and safe electrical installations.
• Temperature and Humidity Resilience: Operates in environments with temperatures ranging from -25°C to +60°C and altitudes up to 2000m.

Specifications:

• Rated Operational Voltage: 220V / 415V AC
• Rated Insulation Voltage: 690V
• Rated Impulse Withstand Voltage: 8kV
• Rated Ultimate Short-Circuit Breaking Capacity:
  • 35kA at 230V AC
  • 35kA at 240V AC
  • 25kA at 400V AC and 415V AC
  • 25kA at 380V AC
• Endurance: 1000 electrical cycles and 4000 mechanical operations
• Temperature Range: Operates in conditions up to 50°C
• Connection: Screw-type connection for flexible and rigid cables
• Environmental Protection: Rated for degree of pollution 3 as per IEC 60664/60947-2
• Compliance: REACH and RoHS compliant

The Hager X160 H3 20A MCCB offers dependable protection for your electrical circuits, featuring high breaking capacity, durable construction, and ease of installation.
