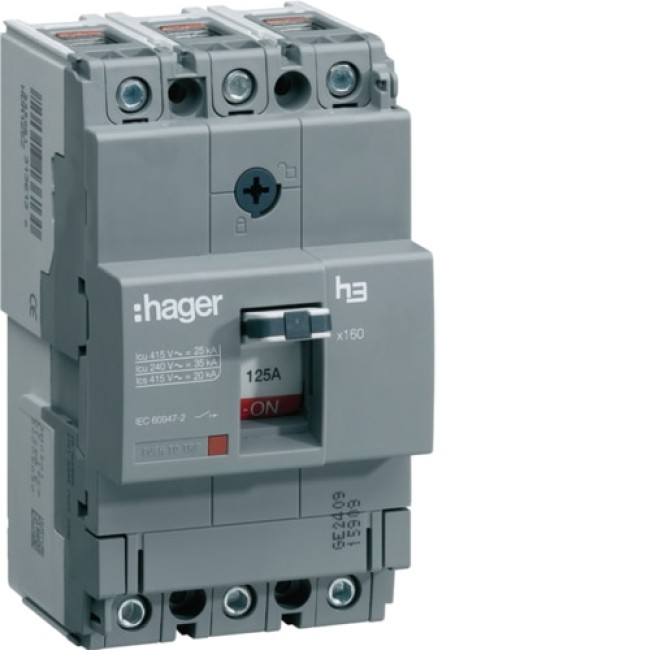

Hager Moulded Case Circuit Breaker H3 X160 TM FIX 3P3D 125A 25kA CTC - HHA125Z

Description for Hager Moulded Case Circuit Breaker H3 X160 TM FIX 3P3D 125A 25kA CTC - HHA125Z

The Hager X160 H3 Moulded Case Circuit Breaker (MCCB) 125A offers superior protection for electrical systems in both industrial and commercial applications. This 3-pole breaker with a 25kA short-circuit breaking capacity ensures reliable operation under high-load conditions. The thermal-magnetic trip unit (TM F/F) provides effective protection against overloads and short circuits. Designed for ease of installation, it features screw-type front connections and complies with IEC 60947-2 standards. Whether in demanding electrical environments or standard installations, this breaker guarantees the safety and longevity of your electrical circuits.

Key Features:

• Rated Current: 125A, with adjustable thermal protection based on environmental temperature variations.
• High Breaking Capacity:
  • 35kA at 230V AC and 240V AC
  • 25kA at 400V AC and 415V AC
  • 25kA at 380V AC
• Thermal-Magnetic Trip Unit: Offers overload and short-circuit protection.
• Compact Dimensions: 75mm width and 130mm height for space-efficient installation.
• Endurance: 1000 electrical cycles and 4000 mechanical operations for extended durability.
• Thermal Adjustment Range: 125A, adjustable based on temperature conditions from 10°C to 70°C.
• Screw-Type Connection: For flexible and rigid cables with a connection range of 4 to 70mm².
• Motor Drive Option: Available for additional functionality.
• IEC 60947-2 Compliant: Meets global safety and performance standards.
• Operating Temperature Range: -25°C to +60°C, ensuring reliable operation in varied climates.
• Altitude Resistance: Suitable for operation up to 2000 meters above sea level.
• Power Loss: Total power loss of 33W at rated current, with 11W per pole.

Specifications:

• Rated Operational Voltage: 220V / 415V AC
• Rated Insulation Voltage: 690V
• Rated Impulse Withstand Voltage: 8kV
• Rated Ultimate Short-Circuit Breaking Capacity:
  • 35kA at 230V AC and 240V AC
  • 25kA at 400V AC and 415V AC
  • 25kA at 380V AC
• Endurance: 1000 electrical cycles, 4000 mechanical operations
• Temperature Range: -25°C to +60°C for reliable operation in various environments
• Connection Type: Screw-type, for both flexible and rigid cables
• Standards Compliant: IEC 60947-2, ensuring reliable electrical protection
• Environmental Protection: Degree of pollution 3 as per IEC 60664/60947-2

The Hager X160 H3 125A MCCB provides robust protection for electrical systems, featuring a high short-circuit breaking capacity and reliable overload protection. Its thermal-magnetic trip unit, combined with easy installation and extended durability, makes it an excellent choice for various electrical applications.
