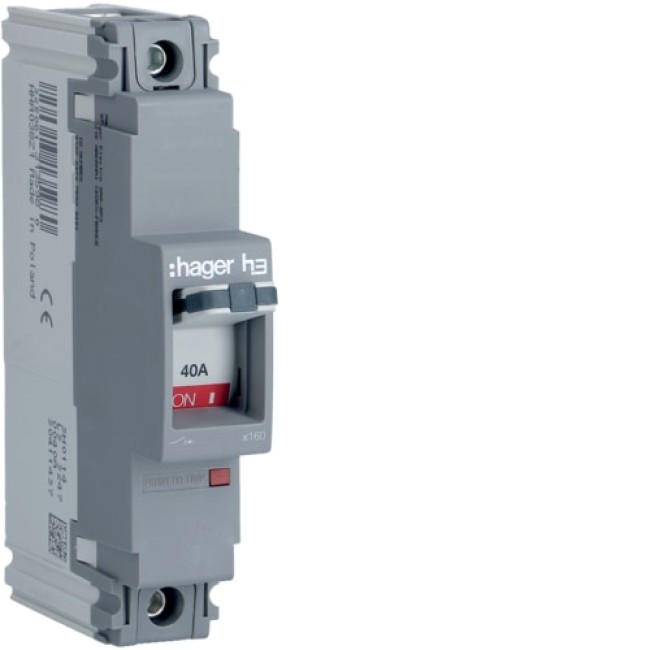

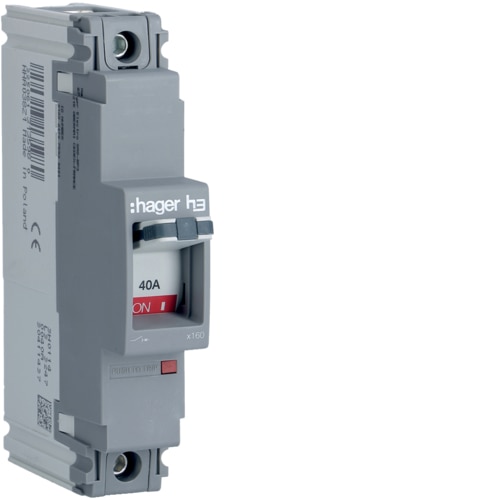

Hager Moulded Case Circuit Breaker H3 x160 TM FIX 1P1D 40A 25kA CTC - HHA038Z

Description for Hager Moulded Case Circuit Breaker H3 x160 TM FIX 1P1D 40A 25kA CTC - HHA038Z

The Hager H3 x160 Moulded Case Circuit Breaker (MCCB) 1P1D 40A provides reliable circuit protection with a 25kA short-circuit breaking capacity. Ideal for AC circuits, it features a thermal-magnetic trip unit (TM F/F), which ensures protection against both overloads and short circuits. The rated current is adjustable depending on ambient temperature, with values ranging from 33.7A to 50.1A. With compliance to IEC 60947-2 standards, the Hager MCCB is designed for high performance and longevity, capable of enduring up to 4000 mechanical operations and 1000 electrical cycles.

Key Features:

• Rated Current: 40A, with adjustable current settings based on temperature, ranging from 33.7A to 50.1A.
• High Breaking Capacity: 25kA at 220V, 230V, and 240V AC for robust protection against electrical faults.
• Thermal-Magnetic Trip Unit: Provides reliable protection against overloads and short circuits.
• Compact Design: Dimensions of 130 mm (H) x 25 mm (W) x 68 mm (D), suitable for space-constrained installations.
• Endurance: Rated for up to 4000 mechanical operations and 1000 electrical cycles.
• Temperature Calibration: Performance optimized for ambient temperatures up to 50°C.
• Connection Compatibility: Suitable for screw-type connections with flexible (6 to 70mm²) and rigid (6 to 95mm²) cables.
• Standards Compliant: Meets IEC 60947-2, REACH, and RoHS standards for environmental and safety compliance.
• Mounting: Easy installation with screw-type connections and a 6Nm tightening torque.

Specifications:

• Rated Operational Voltage: 220V / 240V AC
• Rated Insulation Voltage: 690V
• Breaking Capacity: 25kA at 220V / 230V / 240V AC
• Endurance: 4000 mechanical operations, 1000 electrical cycles
• Pollution Degree: 3
• Magnetic Adjustment Range: 600A
• Compliance: IEC 60947-2

The Hager H3 x160 MCCB 40A is a dependable solution for protecting your electrical circuits, offering high performance and durability in various applications.
