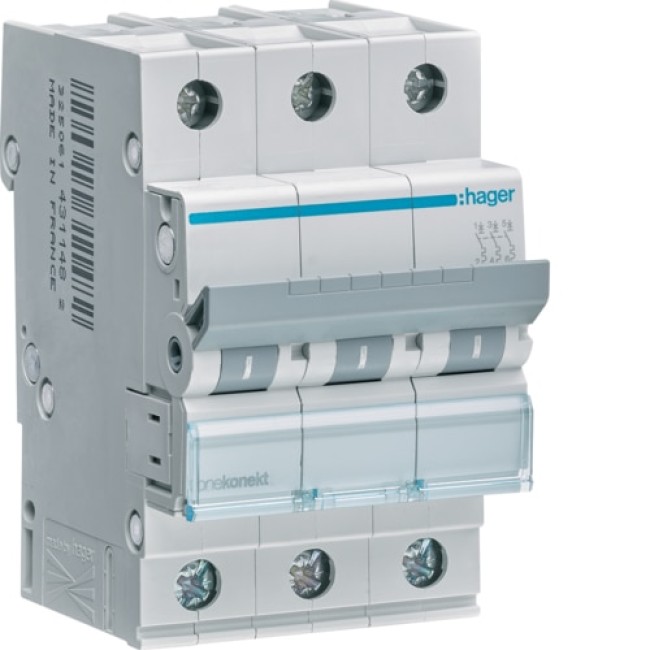

Hager MCB 3P 6kA C-20A 3M - MCN320

Description for Hager MCB 3P 6kA C-20A 3M - MCN320

The Hager MCB 3P 6kA C-20A MCN320 is a highly reliable miniature circuit breaker designed for modern electrical installations. Offering superior protection against short circuits and overloads, it is perfect for both residential and commercial applications. With a rated operational voltage of 415V AC and a C-curve tripping characteristic, this 3-pole MCB is ideal for circuits with moderate inrush currents. It is engineered with a 6 kA short-circuit breaking capacity and complies with IEC 60898-1 standards. This breaker features a modular 3-module configuration, ensuring an efficient and organized setup for electrical systems. The MCB operates across a wide temperature range and offers excellent endurance, making it a durable and energy-efficient solution for safeguarding your electrical infrastructure.

Key Features:

• Rated Short Circuit Breaking Capacity: 6 kA, ensuring robust protection against short circuits.
• Rated Operational Voltage: 415 V AC with a frequency range of 50/60 Hz, ideal for varied applications.
• C-Curve Tripping: Perfect for circuits with moderate inrush currents, such as lighting and motors.
• Thermal Regulation: Consistent performance with a wide temperature range and current correction factors.
• High Endurance: Electric endurance of 4000 cycles and mechanical endurance up to 20,000 cycles.
• Low Power Loss: Only 3.07 W per pole at rated current for energy-efficient operation.
• IEC 60898-1 Compliance: Meets international standards for electrical protection.
• Flexible Connectivity: Supports both flexible (up to 25 mm²) and rigid (up to 35 mm²) conductors.
• Compact Design: 3-module width for easy integration into electrical panels.
• Wide Operating Temperature Range: Operates effectively from -25°C to 70°C, suitable for diverse environments.
