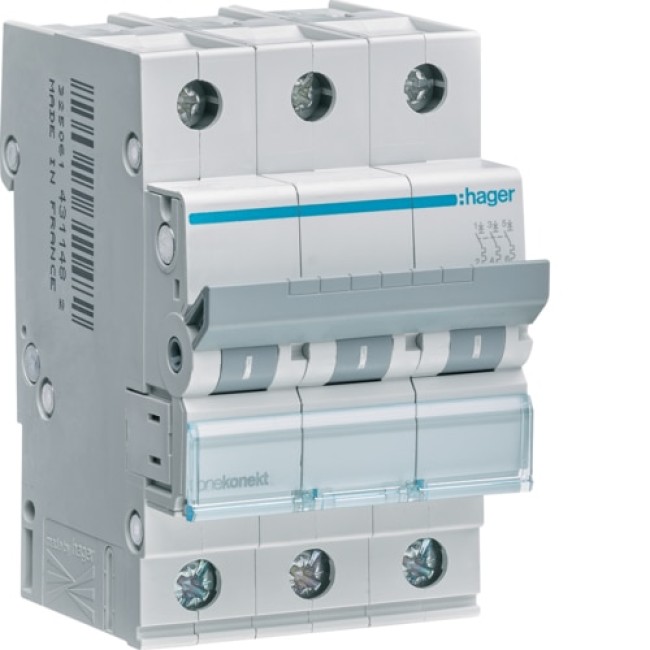

Hager MCB 3P 6kA C-16A 3M - MCN316

Description for Hager MCB 3P 6kA C-16A 3M - MCN316

The Hager MCB 3P 6kA C-16A MCN316 is an advanced miniature circuit breaker, designed to protect electrical circuits from overloads and short circuits. Ideal for use in residential, commercial, and industrial applications, this 3-pole MCB offers outstanding reliability and performance. With a 6 kA short circuit breaking capacity and a rated operational voltage of 415V AC, it provides top-tier protection for modern electrical systems. Its C-curve tripping mechanism is perfect for circuits with moderate inrush currents, such as motors and lighting systems. Featuring a 3-module configuration, the MCB is easy to install and provides long-lasting durability.

Key Features:

• Rated Short Circuit Breaking Capacity: 6 kA, ensuring robust protection against short circuits.
• Rated Operational Voltage: 415 V AC with a frequency range of 50/60 Hz for versatile applications.
• C-Curve Tripping: Designed for moderate inrush currents, making it ideal for motor and lighting circuits.
• Compact Design: 3-module width for efficient space usage in electrical panels.
• Thermal Regulation: Provides stable performance across a wide temperature range, with current correction factors.
• Endurance: Electric endurance of 4000 cycles and mechanical endurance of up to 20,000 cycles.
• Efficient Power Loss: Low power loss of 2.14 W per pole at rated current.
• Standards Compliance: Complies with IEC 60898-1 for high-quality and safe operation.
• Versatile Connections: Supports flexible and rigid cables (up to 25 mm² and 35 mm²).
• Durable Construction: Operates effectively in temperatures from -25°C to 70°C, making it suitable for diverse environments.
