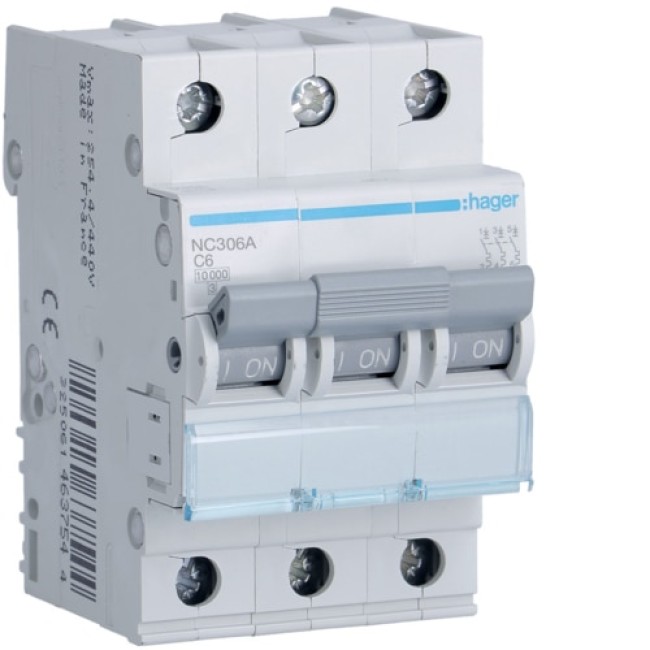

Hager MCB 3P 10kA C-6A 3M - NC306A

Description for Hager MCB 3P 10kA C-6A 3M - NC306A

The Hager MCB 3P 10kA C-6A 3M (NC306A) is a high-performance miniature circuit breaker designed to provide reliable protection against electrical faults in a wide range of applications. This 3-pole circuit breaker features a C-curve characteristic and offers a short circuit breaking capacity of 10 kA. It is designed for use in both 230V and 400V AC systems and is suitable for protecting circuits from overloads and short circuits, ensuring the safety of electrical installations. With its robust construction and compliance with international standards, the Hager MCB is ideal for residential, commercial, and industrial applications.

Key Bullet Points:

• Type: 3P (3 Poles)
• Rated Current: 6A
• Short Circuit Breaking Capacity (Icn): 10 kA
• Rated Operational Voltage (Ue): 230 / 400 V AC
• Curve: C (magnetic tripping current between 5-10 times rated current)
• Rated Insulation Voltage: 500 V
• Rated Impulse Withstand Voltage: 4000 V
• Electric Endurance: 4000 cycles
• Mechanical Endurance: 20,000 cycles
• Temperature Range for Operation: -25°C to 70°C
• Mounting: DIN rail mounted with metallic bottom clip
• Standards: Compliant with EN 60898-1
• RoHS Compliant: Yes
• Application: Suitable for residential, commercial, and industrial electrical installations
