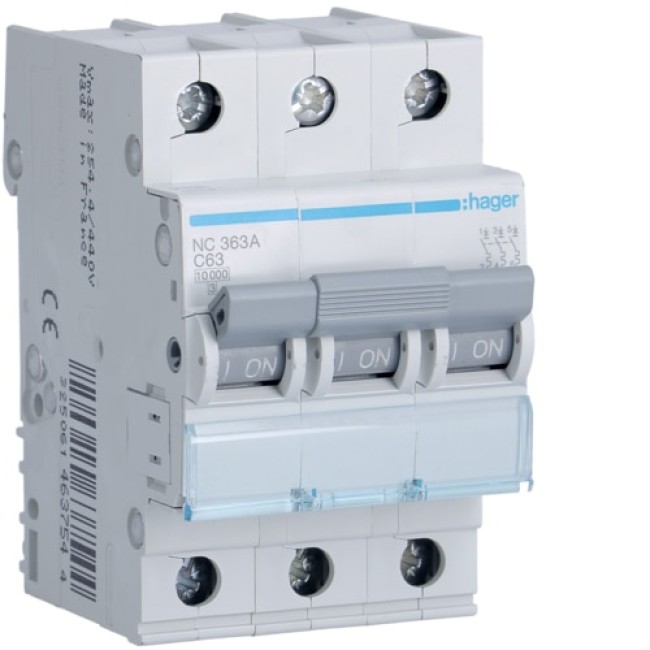

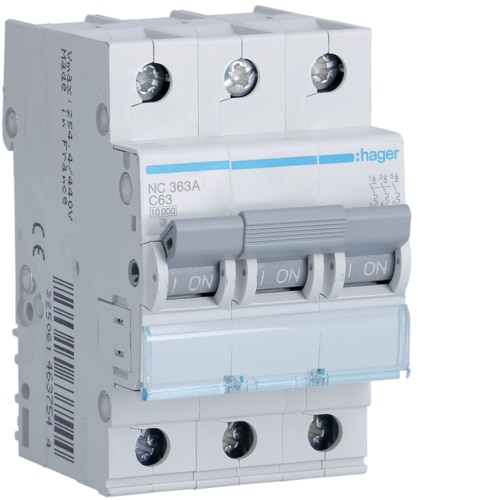

Hager MCB 3P 10kA C-63A 3M - NC363A

Description for Hager MCB 3P 10kA C-63A 3M - NC363A

Ensure Safety and Performance with the Hager MCB 3P 10kA C-63A 3M - NC363A

The Hager MCB (Miniature Circuit Breaker) 3 Pole 10kA C-63A 3M offers exceptional protection for electrical circuits in residential, commercial, and industrial applications. Designed with advanced thermal and magnetic tripping mechanisms, it ensures precise protection against overloads and short circuits. Operating at 230/400V AC and with a rated breaking capacity of 10kA, this MCB is highly reliable for safeguarding your electrical systems.

Compact and easy to install, the Hager NC363A fits seamlessly on DIN rails, featuring aligned terminals for top and bottom connections. With compliance to EN 60898-1 standards and an operating temperature range of -25°C to 70°C, it ensures durability in all climates. Suitable for demanding environments, this MCB offers long-lasting endurance with up to 20,000 mechanical operations.

Key Bullet Points

• Rated Current: 63A | 3 Pole (3P) configuration
• Breaking Capacity: 10kA under 230/400V AC (IEC 60898-1 compliant)
• Thermal & Magnetic Protection: C-curve for precise overload and short circuit protection
• Wide Operating Temperature: -25°C to 70°C for versatile use in all climates
• Compact Design: 3 modules (3M) width with aligned top and bottom terminals
• Power Efficiency: Low power loss of 6.24W per pole at In
• Long-lasting Endurance: 20,000 mechanical operations and 4,000 electrical cycles
• Installation-Friendly: Fits standard DIN rails with robust screw connections
• Standards Compliance: EN 60898-1 | RoHS compliant
