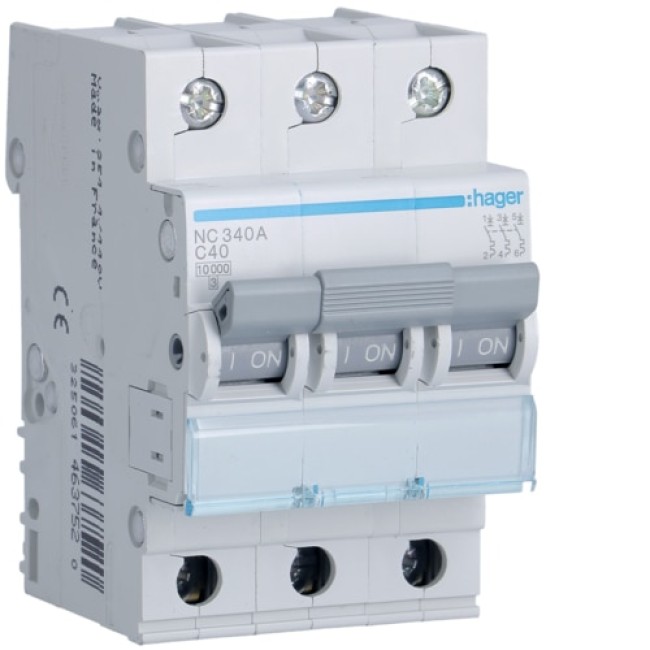

Hager MCB 3P 10kA C-40A 3M - NC340A

Description for Hager MCB 3P 10kA C-40A 3M - NC340A

The Hager NC340A Miniature Circuit Breaker (MCB) is a reliable solution for protecting electrical circuits from overloads and short circuits. Designed with a 3-pole configuration and a C-curve tripping characteristic, it provides efficient performance for residential, commercial, and industrial applications. With a rated current of 40A, a breaking capacity of 10kA, and compliance with IEC 60898-1, the Hager NC340A ensures safety, durability, and energy efficiency.

Crafted for easy installation, it features screw terminals supporting flexible and rigid cables, ensuring secure and reliable connections. Its robust design operates efficiently across wide temperature ranges from -25°C to 70°C and offers excellent mechanical endurance up to 20,000 cycles.

Key Bullet Points:

• Rated Current: 40A for efficient protection.
• Breaking Capacity: 10kA at 230/400V AC (IEC 60898-1).
• Tripping Curve: C curve for protection against short circuits and overloads.
• Poles: 3P (3 poles) for multi-phase circuits.
• Voltage Rating: 230/400V AC, 50/60 Hz frequency.
• Thermal & Magnetic Protection: 1.13-1.45 In (thermal) and 5-10 In (magnetic).
• Endurance: 4,000 electrical cycles and 20,000 mechanical operations.
• Temperature Range: Operates efficiently from -25°C to 70°C.
• Power Loss: Minimal energy loss with 18.7W under In.
• Mounting: Easy DIN rail clip-on installation with metallic bottom rail clips.
• Connections: Supports 1-25mm² flexible cables and 1-35mm² rigid cables.
• Standards: Compliant with EN 60898-1 and RoHS standards.
