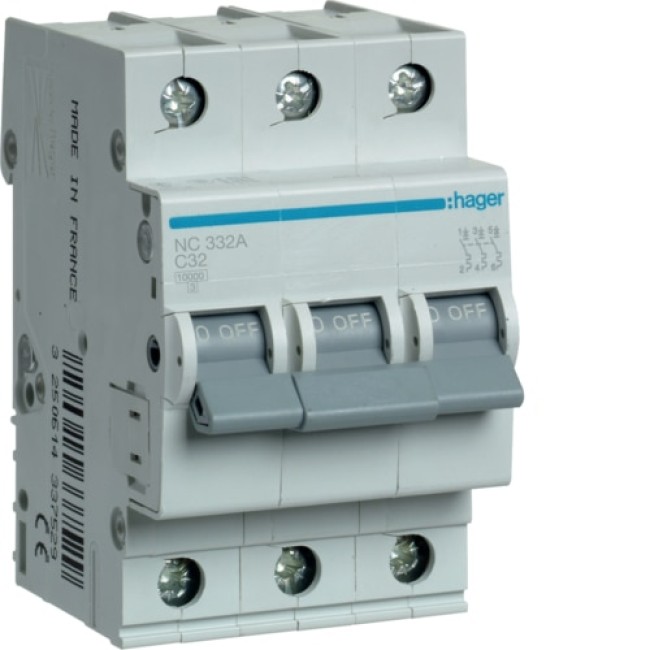

Hager MCB 3P 10kA C-32A 3M, 3 Pole Miniature Circuit Breaker - NC332A

Description for Hager MCB 3P 10kA C-32A 3M, 3 Pole Miniature Circuit Breaker - NC332A

The Hager MCB 3P 10kA C-32A NC332A is a premium 3-pole miniature circuit breaker designed for optimal protection and performance in AC electrical circuits. Featuring a rated operational voltage of 400 V and a rated current of 32A, this MCB ensures safe and reliable operation in both residential and commercial applications. With a C curve tripping characteristic, it provides accurate protection against overloads and short circuits.

Built to conform with IEC 60898-1 standards, this miniature circuit breaker boasts a robust 10 kA short-circuit breaking capacity and superior endurance with up to 20,000 mechanical operations. Compact and durable, the NC332A offers efficient installation with screw-type connections and aligned terminals. Ideal for environments with temperatures ranging from -25°C to 70°C.

Key Features:

• Poles: 3 Pole (3P)
• Rated Current: 32A
• Breaking Capacity: 10 kA at 400 V AC
• Curve Type: C Curve (5-10 x In magnetic tripping)
• Standards Compliance: EN/IEC 60898-1
• Operational Voltage: 400 V AC
• Rated Insulation Voltage: 500 V
• Impulse Withstand Voltage: 4000 V
• Endurance: 20,000 mechanical cycles, 4,000 electrical cycles
• Installation: Screw terminal connection, BIconnect bottom connection
• Operating Temperature: -25°C to 70°C
• Dimensions: Height - 83 mm, Width - 52.5 mm, Depth - 70 mm
• Power Loss: 12.3 W total under In

Engineered for reliability and long-lasting performance, the Hager NC332A MCB provides enhanced electrical safety and superior circuit protection, ensuring minimal downtime and consistent operation.
