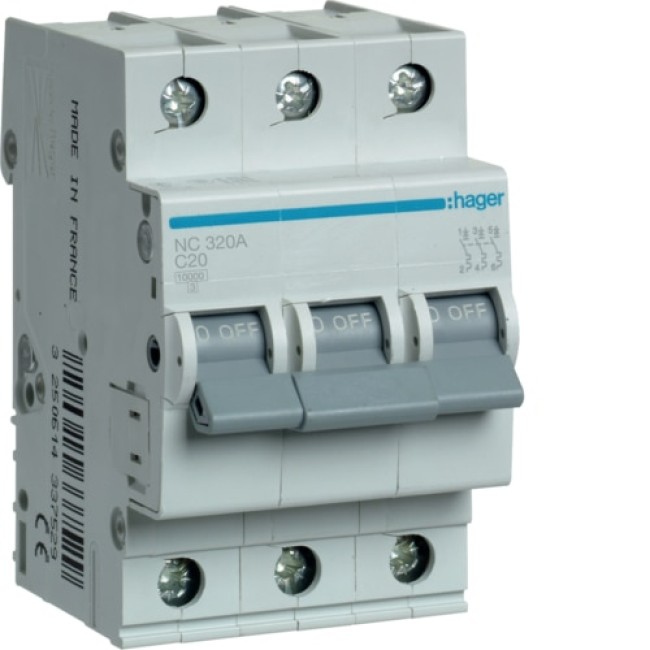

Hager MCB 3P 10kA C-20A 3M - NC320A

Description for Hager MCB 3P 10kA C-20A 3M - NC320A

The Hager MCB 3P 10kA C-20A 3M - NC320A is a high-quality miniature circuit breaker designed to provide superior protection in electrical installations. This 3-pole breaker offers a high short-circuit breaking capacity of 10kA and is rated for 20A, ensuring optimal performance in residential and commercial applications. With its C curve characteristic, the NC320A is perfect for circuits with moderate inrush currents, providing reliable protection and minimizing the risk of electrical faults.

This MCB features an impressive electrical endurance of up to 4000 cycles and mechanical durability of 20000 operations, making it a durable and long-lasting solution. It supports 230/400V AC operation and complies with international standards including IEC 60898-1 and IEC 60947-2, guaranteeing high reliability. The breaker is equipped with a metallic bottom rail clip for easy mounting and installation, ensuring a secure connection. Its temperature correction factors ensure consistent performance even under varying environmental conditions.

Whether you're upgrading your electrical system or safeguarding sensitive equipment, the Hager MCB NC320A delivers unmatched protection, energy efficiency, and ease of installation.

Key Features:

• 3-Pole Configuration: Ideal for three-phase applications, ensuring reliable protection for all poles.
• 10kA Short-Circuit Breaking Capacity: Provides effective protection from short-circuits.
• 20A Rated Current: Suitable for a wide range of residential and industrial applications.
• C Curve Type: Designed for moderate inrush currents, ideal for appliances with higher startup currents.
• Rated Insulation Voltage: 500V for robust electrical insulation.
• Endurance: Rated for 4000 electrical cycles and 20000 mechanical operations, ensuring longevity.
• Mounting: Easy installation with metallic bottom rail clip and screw terminals.
• Complies with IEC Standards: Fully conforms to IEC 60898-1 and IEC 60947-2 standards.
• Temperature-Resistant: Operating range of -25°C to 70°C.
• Power Loss Efficiency: Only 8.7W power loss under rated current, ensuring minimal energy wastage.
