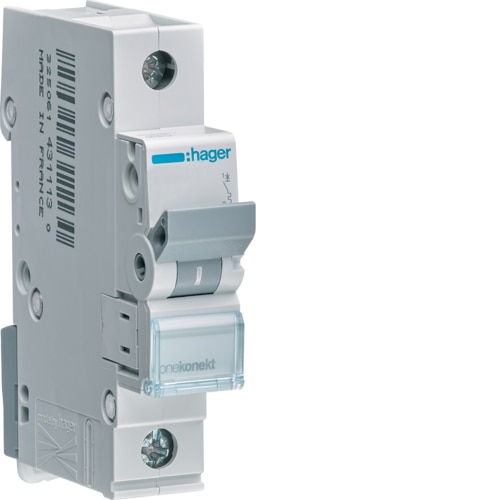

Hager MCB 1P 6kA C-6A 1M, 6A, Single Pole, Type C Miniature Circuit Breaker - - MCN106

Description for Hager MCB 1P 6kA C-6A 1M, 6A, Single Pole, Type C Miniature Circuit Breaker - - MCN106

The Hager MCB 1P 6kA C-6A 1M - MCN106 is a reliable and high-performance miniature circuit breaker designed to protect electrical circuits from overload and short-circuit conditions. This single-pole circuit breaker features a 6kA rated short-circuit breaking capacity and operates efficiently under a voltage range of 240V to 415V AC. With a C curve, this MCB is perfect for circuits with moderate inrush currents, such as lighting and small appliances. Designed for easy installation, it is equipped with top and bottom aligned terminals for modular devices, ensuring a secure connection.

With a rated current of 6A, the Hager MCB is engineered for durability and safety. It complies with IEC 60898-1 standards and features a high endurance, capable of handling 4000 electrical cycles and up to 20,000 mechanical operations. Whether for residential or commercial applications, the MCN106 offers exceptional performance in diverse environments, operating in temperatures ranging from -25°C to 70°C.

Key Features:

• Rated Short Circuit Breaking Capacity (Icn): 6 kA (IEC60898-1 compliant)
• Rated Operational Voltage: 240V / 415V AC
• Rated Current: 6A
• Curve Type: C (for moderate inrush current protection)
• Frequency: 50/60 Hz
• Endurance: 4000 electrical cycles & 20,000 mechanical operations
• Temperature Range: -25°C to 70°C
• Installation: Screw connection, plastic bottom clip
• Standards Compliance: IEC 60898-1, RoHS compliant
• Dimensions: 70mm depth, 84.6mm height, 17.5mm width
• Mounting Type: Modular, with screw and bottom removability for easy integration
• Environment: Suitable for a wide range of climates, with air humidity protection
