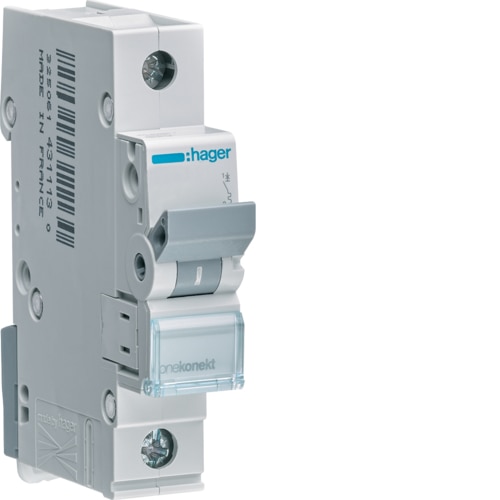

Hager MCB 1P 6kA C-40A 1M - MCN140

Description for Hager MCB 1P 6kA C-40A 1M - MCN140

The Hager MCB 1P 6kA C-40A 1M - MCN140 is a high-performance miniature circuit breaker (MCB) designed to provide robust protection for electrical circuits. Featuring a single-pole design, this device delivers a breaking capacity of 6kA, ensuring reliable operation in residential and commercial applications. With its compact 1-module size and alignment-friendly terminals, the MCB is easy to install and provides consistent safety against overloads and short circuits. Certified to IEC 60898-1 standards, it is built for durability with up to 20,000 mechanical cycles and seamless operation across a wide temperature range.

Key Bullet Points:

• Rated Current: 40A with a C-curve for optimal protection against overloads and short circuits.
• Breaking Capacity: 6kA in compliance with IEC 60898-1 standards.
• Voltage Rating: Operates at 240/415V AC, suitable for a wide range of applications.
• Compact Design: Single-module width, ideal for space-saving installations.
• Durable Build: Up to 20,000 mechanical cycles and 4,000 electrical cycles for long-lasting performance.
• Ease of Installation: Aligned terminals and BIconnect bottom connection for flexible wiring.
• Temperature Resilience: Reliable performance in temperatures ranging from -25°C to 70°C.
• Energy Efficiency: Low power loss of 4.84W under full load.
• Certified Safety: Conforms to IEC 60898-1 with RoHS compliance for environmental safety.
